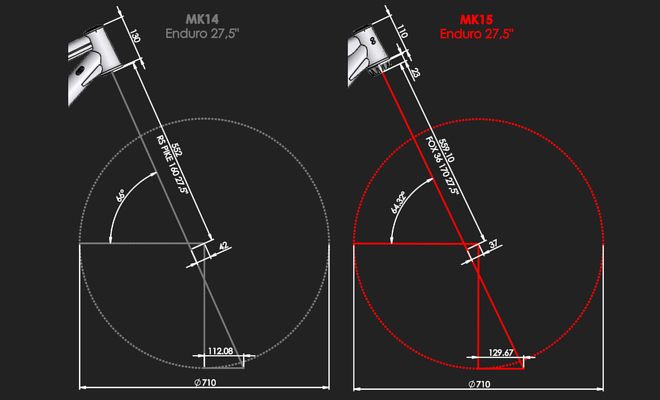

Flatter steering angle compared to the 301 Mk14 and even more agile with bigger wheels. Introducing our all-new Linear Steering Geometry.

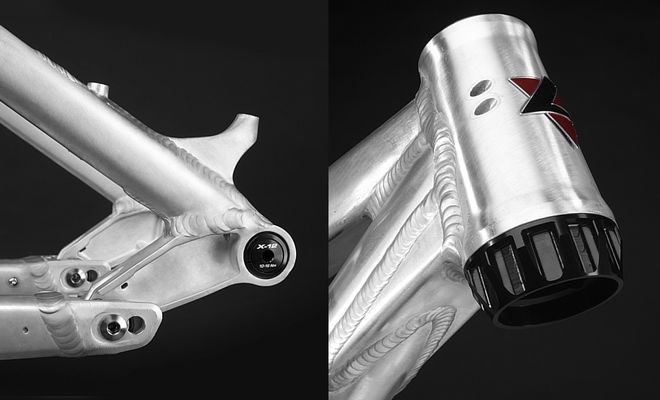

The 301 Mk15 can be ridden with both wheel sizes, not accepting compromises. Thanks to DuoLink and LevelTune, the bike can be assembled with 27.5" or 29" wheels or be adapted to your individual preferences.
In order to guarantee for the agility of the bike for both 27.5" and 29" wheels, we have radically created space and clearance where there was none beforehand. The result: a degree of agility unheard of in the bike industry.

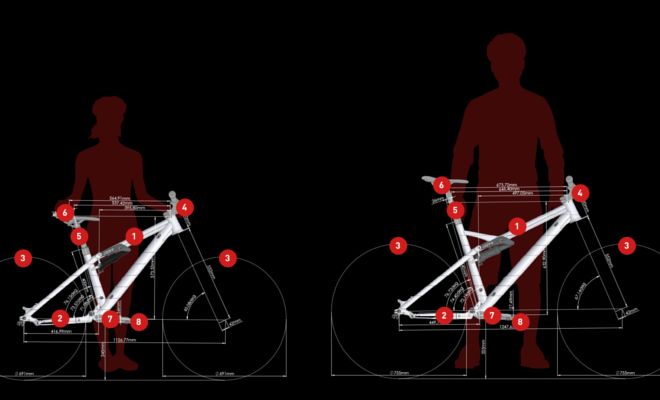

It is our goal to have everybody experience the same riding pleasure with our bikes, no matter the rider's body size.

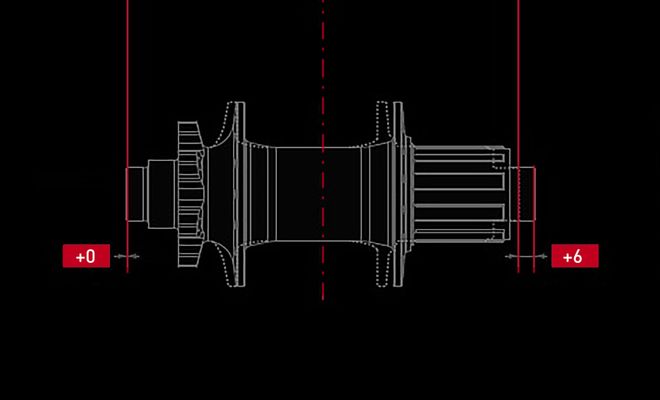

EVO6 means: taking advantage of the extra clearance of the Boost standard for an improved chain line, a balanced spoke triangle and thus a more stable rear wheel.

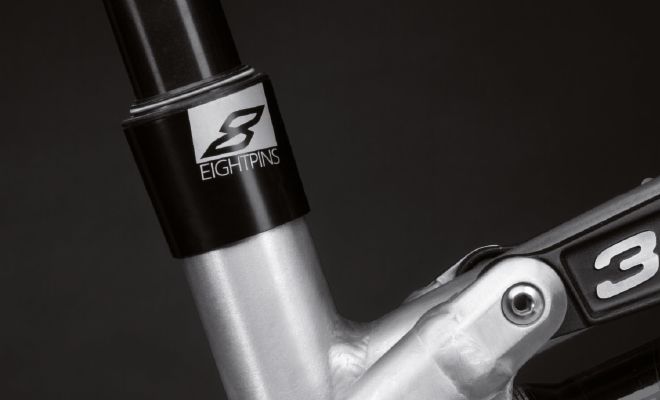

The 301 Mk15 frame is designed to fit the awarded, fully integrated EIGHTPINS dropper post. The Factory Machines come with the EIGHTPINS seatpost as standard.

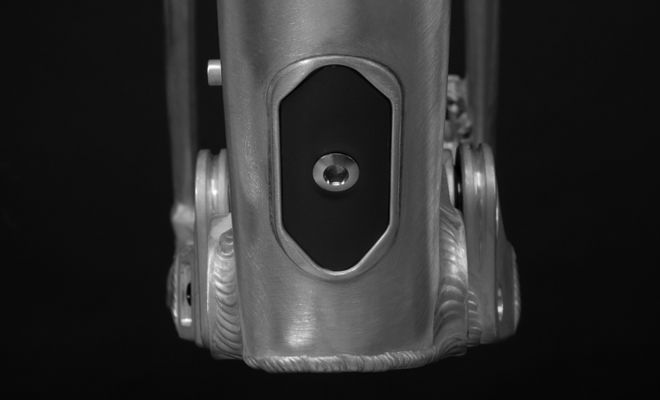

The big hole in the down tube simplifies working on your inner cables and may even host a Di2 battery.

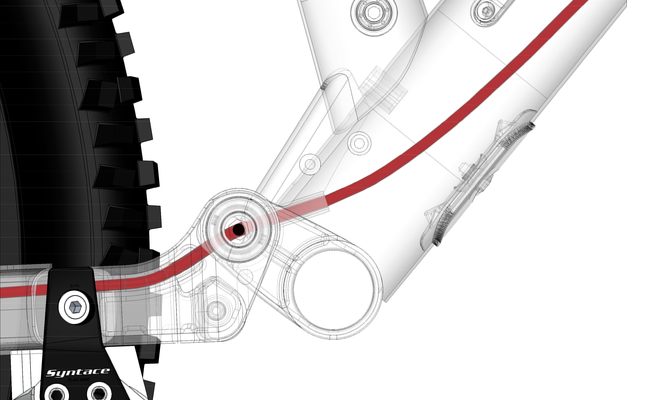

Hidden cable routing for the brake hose, the shifting cables and the EIGHTPINS cable making for clean optics and perfect function.

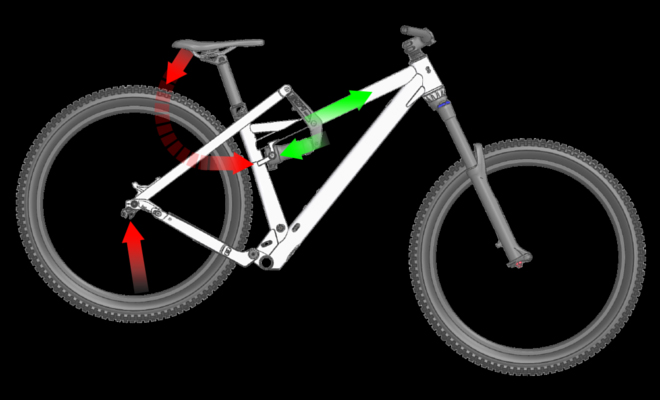

It is nice to look at, yet it is not a design gimmick. Searching for the ultimate solution, the unique rear shock linkage design is our answer.

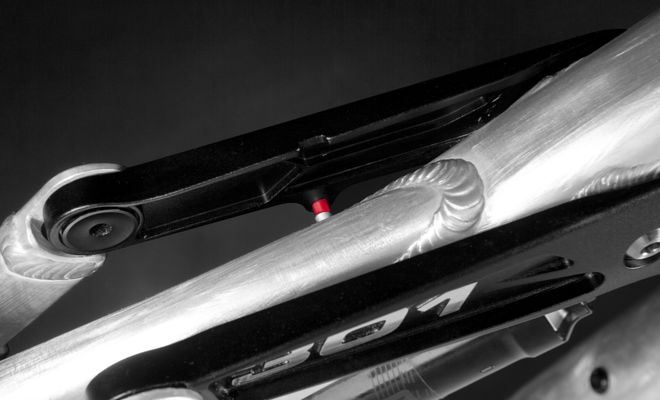

Monitoring and adjusting the SAG without a rubber O-ring or cable tie. It is possible to do this while sitting on the bike, even while riding.

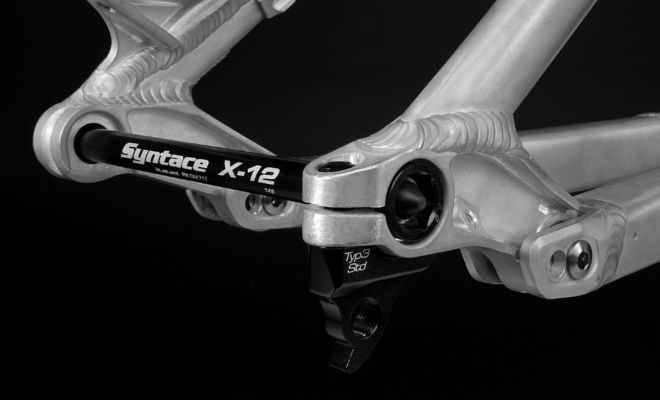

It is the sensational weight of no more than 39g, the unsurpassed stiffness and the super easy handling mounting and demounting the rear wheel that make the system perform like no other on the market.

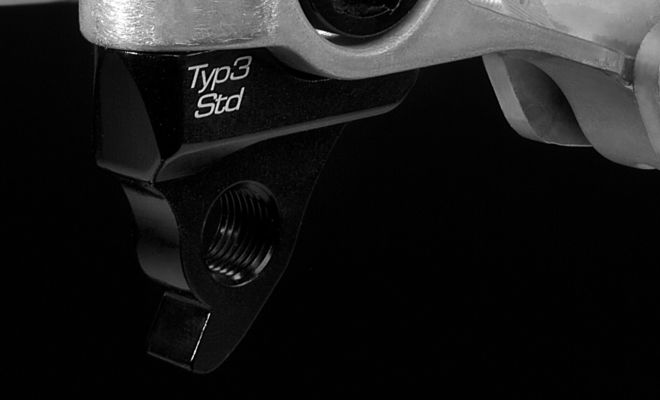

Perfect function as it is lighter and smarter than common rear derailleur hangers.

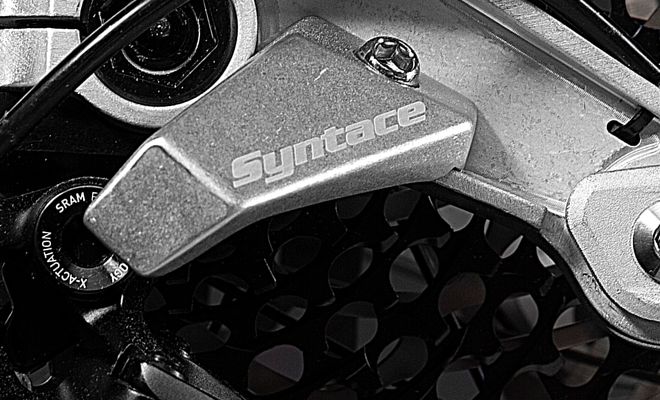

The Syntace RockGuard protects the rear derailleur against being bent towards the back and additionally against being torn away tangentially.
The material aluminium is still superior to the competition carbon, if you do it right.

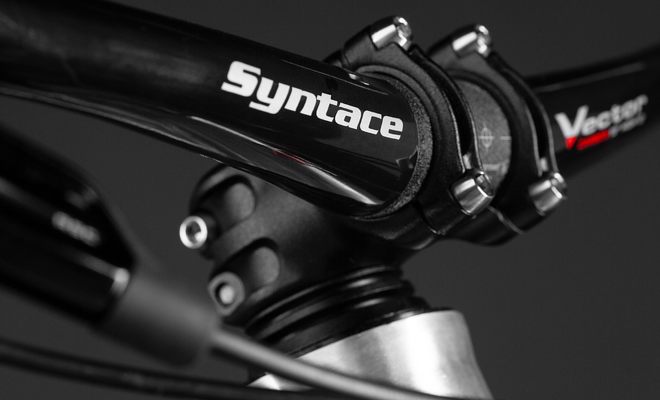

Handlebar, stem, X-12 thru axle, wheelset and steering headset have been designed by Syntace. The combination of well-balanced components make the 301 Mk15 a sophisticated system bike.
The 301 Mk15 can be assembled with 27.5˝ and 29˝ wheels thanks to DuoLink and LevelTune.
Exceptions: frame length S can only be assembled with 27,5˝ wheels, frame length XXL only with 29˝ wheels.

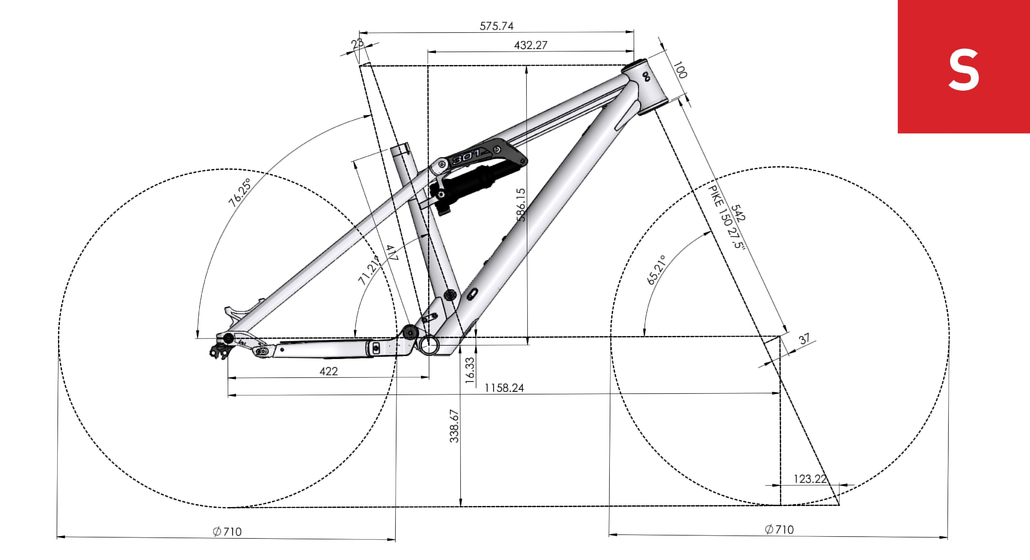

Body size recommendation: 160 cm – 169 cm
Top tube length: 576 mm
Steering tube length: 100 mm
Seat tube length: 417 mm
Chain stay length: 422 mm
Wheel base: 1158 mm
Bottom bracket height: 338 mm
Bottom bracket drop: 16 mm
Seat angle: 76,3°
Steering angle: 65,2°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 432 mm
Stack: 586 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
maximum tire width 2.5˝

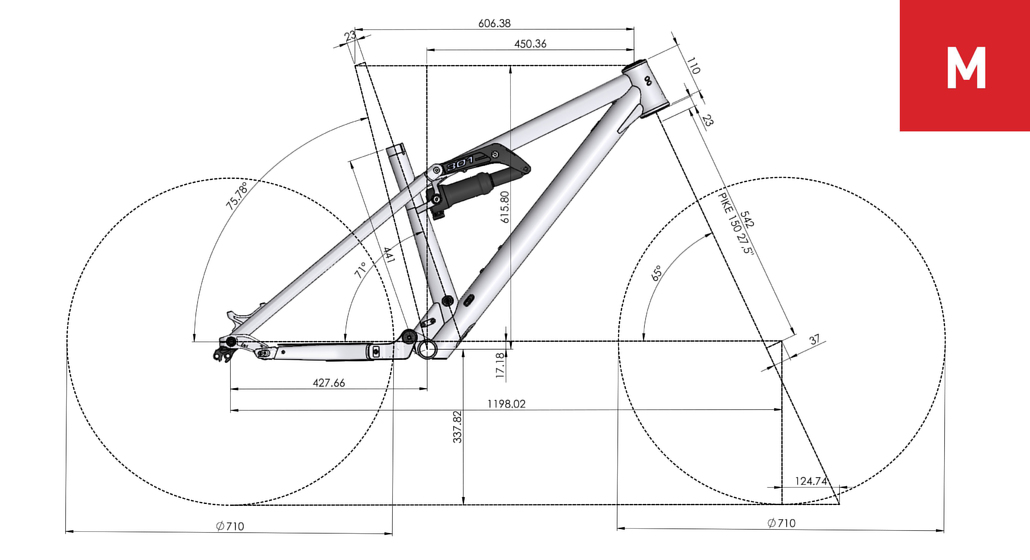

Body size recommendation: 167 cm – 178 cm
Top tube length: 606 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 428 mm
Wheel base: 1198 mm
Bottom bracket height: 338 mm
Bottom bracket drop: 17 mm
Seat angle: 75,8°
Steering angle: 65°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 450 mm
Stack: 616 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
maximum tire width 2.5˝

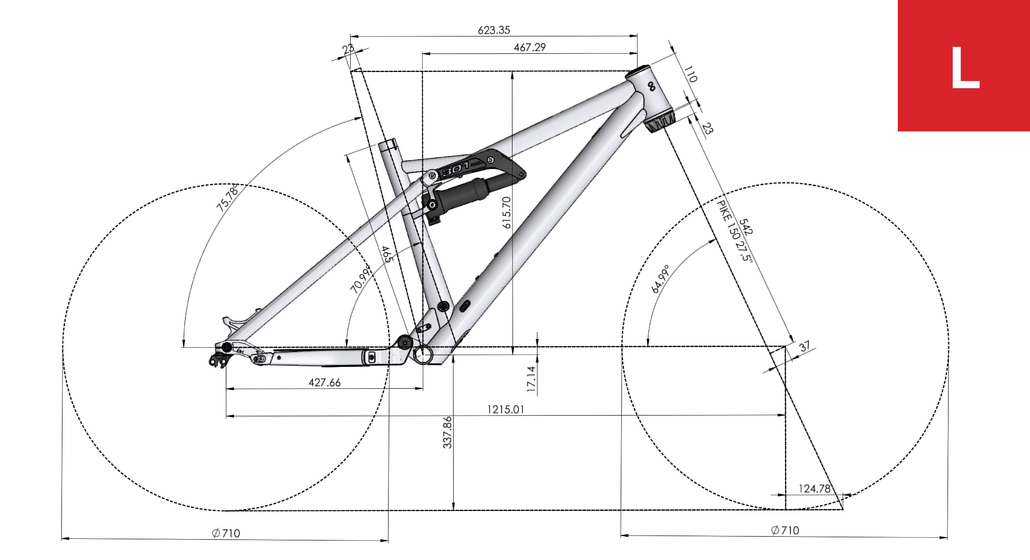

Body size recommendation: 176 cm – 186 cm
Top tube length: 623 mm
Steering tube length: 110 mm
Seat tube length: 465 mm
Chain stay length: 428 mm
Wheel base: 1215 mm
Bottom bracket height: 338 mm
Bottom bracket drop: 17 mm
Seat angle: 75,9°
Steering angle: 65°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 467 mm
Stack: 616 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
maximum tire width 2.5˝
Body size recommendation: 184 cm – 192 cm
Top tube length: 645 mm
Steering tube length: 120 mm
Seat tube length: 489 mm
Chain stay length: 435 mm
Wheel base: 1244 mm
Bottom bracket height: 338 mm
Bottom bracket drop: 17 mm
Seat angle: 75,7°
Steering angle: 65°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 485 mm
Stack: 625 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
maximum tire width 2.5˝

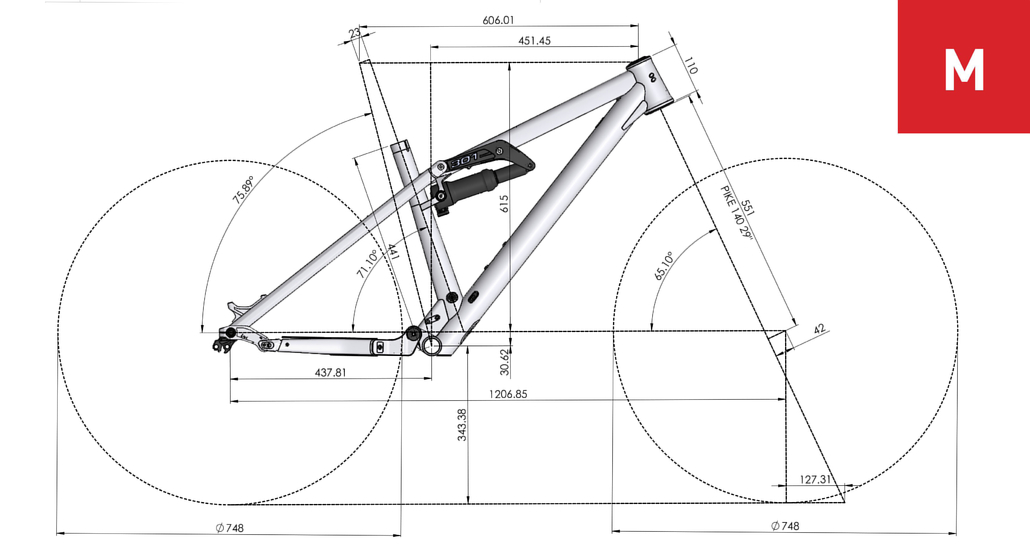

Body size recommendation: 167 cm – 178 cm
Top tube length: 606 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 438 mm
Wheel base: 1207 mm
Bottom bracket height: 343 mm
Bottom bracket drop: 31 mm
Seat angle: 75,9°
Steering angle: 65,1°
Fork insert: 551 mm
Fork offset: 42 mm
Reach: 452 mm
Stack: 615 mm
Wheel diameter rear: 748 mm
Wheel diameter front: 748 mm
maximum tire width 2.5˝˝

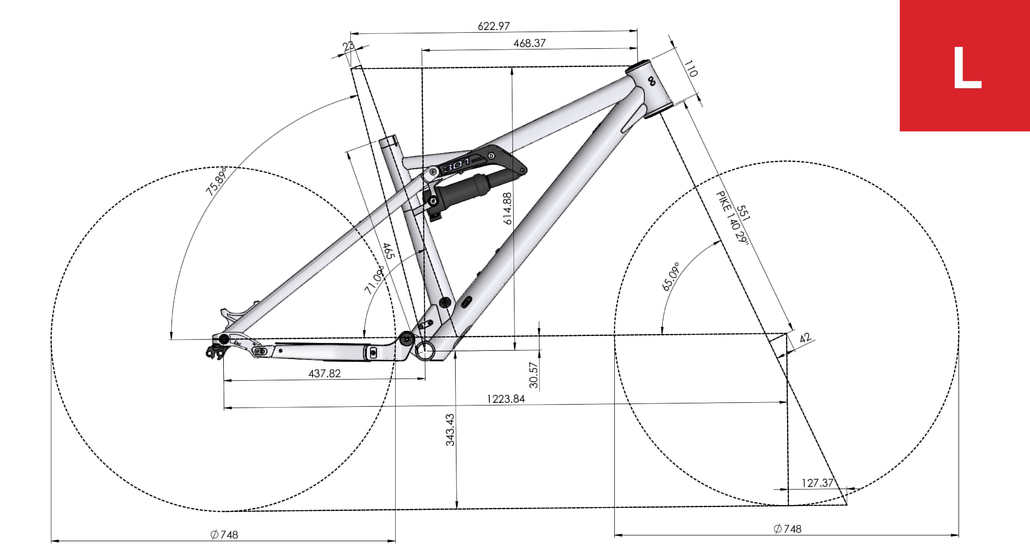

Body size recommendation: 176 cm – 186 cm
Top tube length: 623 mm
Steering tube length: 110 mm
Seat tube length: 465 mm
Chain stay length: 438 mm
Wheel base: 1224 mm
Bottom bracket height: 343 mm
Bottom bracket drop: 31 mm
Seat angle: 75,9°
Steering angle: 65,1°
Fork insert: 551 mm
Fork offset: 42 mm
Reach: 468 mm
Stack: 615 mm
Wheel diameter rear: 748 mm
Wheel diameter front: 748 mm
maximum tire width 2.5˝
Body size recommendation: 184 cm – 192 cm
Top tube length: 644 mm
Steering tube length: 120 mm
Seat tube length: 489 mm
Chain stay length: 445 mm
Wheel base: 1253 mm
Bottom bracket height: 344 mm
Bottom bracket drop: 31 mm
Seat angle: 75,5°
Steering angle: 65,1°
Fork insert: 551 mm
Fork offset: 42 mm
Reach: 486 mm
Stack: 624 mm
Wheel diameter rear: 748 mm
Wheel diameter front: 748 mm
maximum tire width 2.5˝

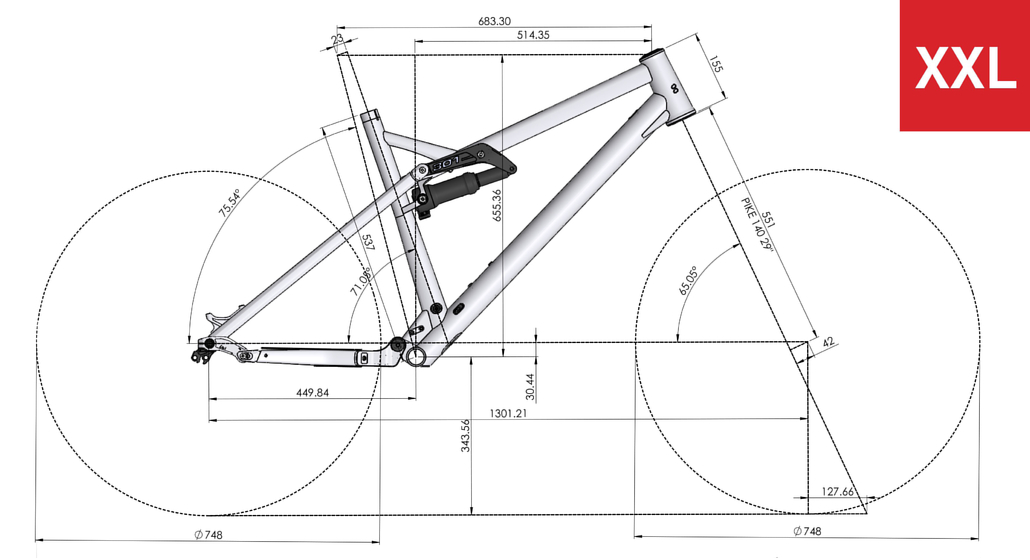

Body size recommendation: 189 cm – 205 cm
Top tube length: 683 mm
Steering tube length: 155 mm
Seat tube length: 537 mm
Chain stay length: 450 mm
Wheel base: 1301 mm
Bottom bracket height: 344 mm
Bottom bracket drop: 30 mm
Seat angle: 75,5°
Steering angle: 65,1°
Fork insert: 551 mm
Fork offset: 42 mm
Reach: 514 mm
Stack: 655 mm
Wheel diameter rear: 748 mm
Wheel diameter front: 748 mm
maximum tire width 2.5˝
