We have radically created space and clearance where there was none beforehand. The result: a degree of agility unheard of in the bike industry.

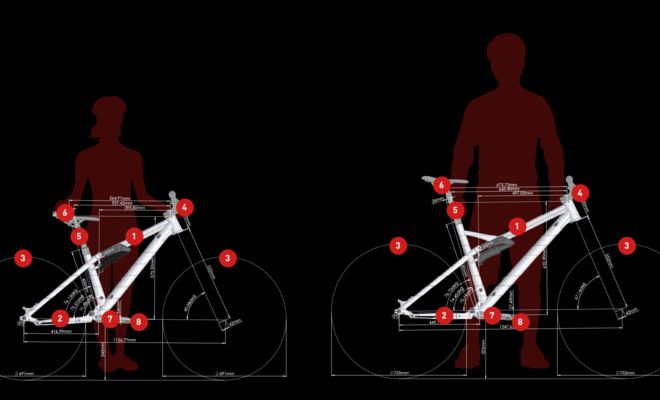

It is our goal to have everybody experience the same riding pleasure with our bikes, no matter the rider's body size.

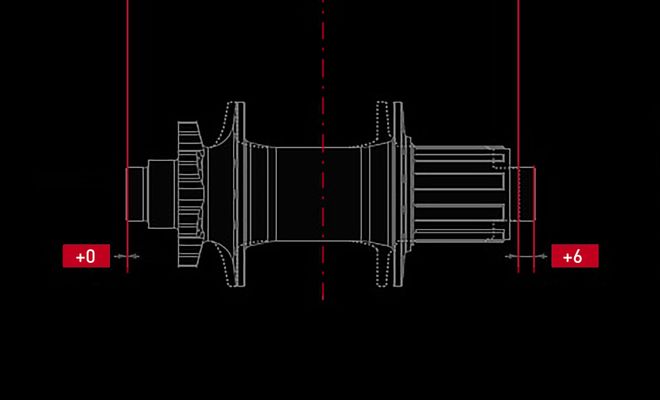

EVO6 means: taking advantage of the extra clearance of the Boost standard for an improved chain line, a balanced spoke triangle and thus a more stable rear wheel.

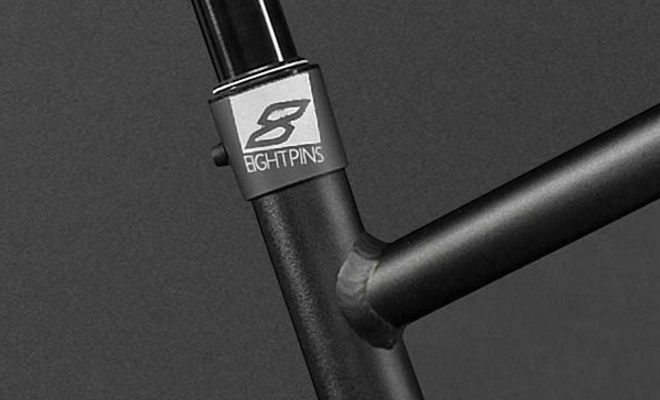

The 601 Mk4 frame is designed to fit the awarded, fully integrated EIGHTPINS dropper post. The Factory Machines come with the EIGHTPINS seatpost as standard.
The big hole in the down tube simplifies working on your inner cables and may even host a Di2 battery.

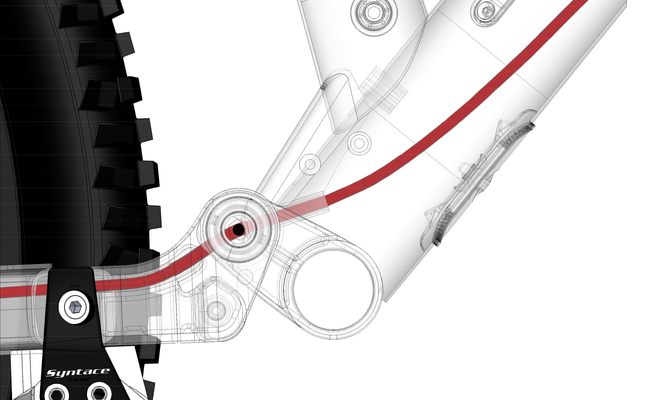

Hidden cable routing for the brake hose, the shifting cables and the EIGHTPINS cable making for clean optics and perfect function.

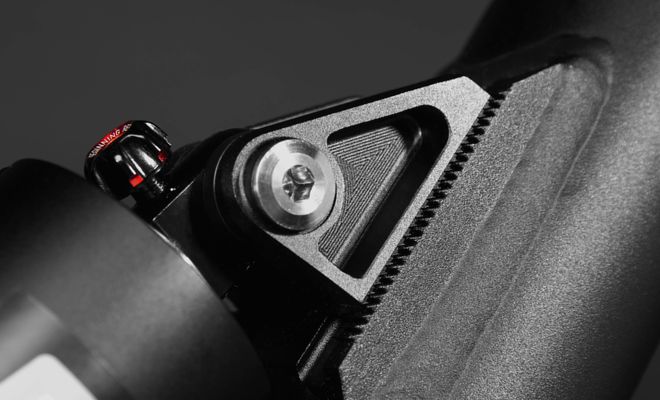

MicroAdjust Shockmount for geometry fine tuning.

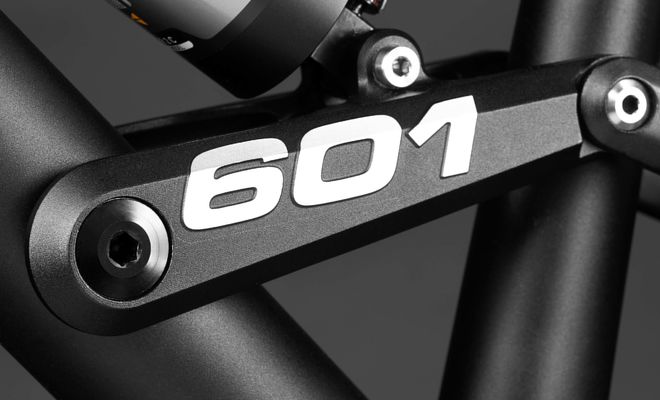

CNC milled Rockerarm for a maximum of stiffness. Four roller bearings with self-securing cone clamping mechanism at the damper socket.

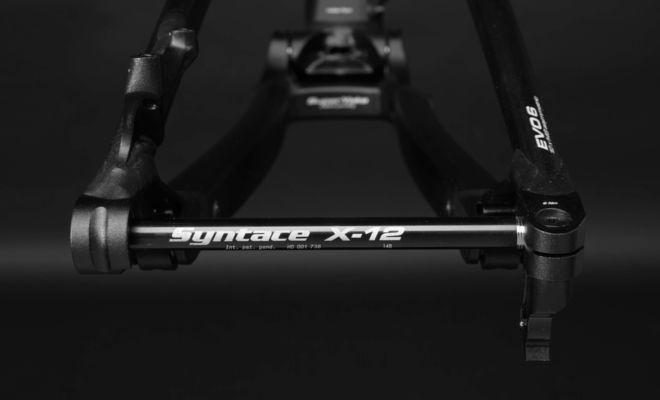

It is the sensational weight of no more than 39g, the unsurpassed stiffness and the super easy handling mounting and demounting the rear wheel that make the system perform like no other on the market.

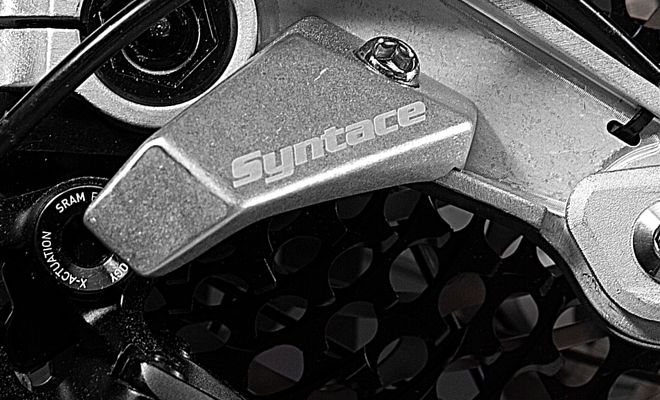

The Syntace RockGuard protects the rear derailleur against being bent towards the back and additionally against being torn away tangentially.

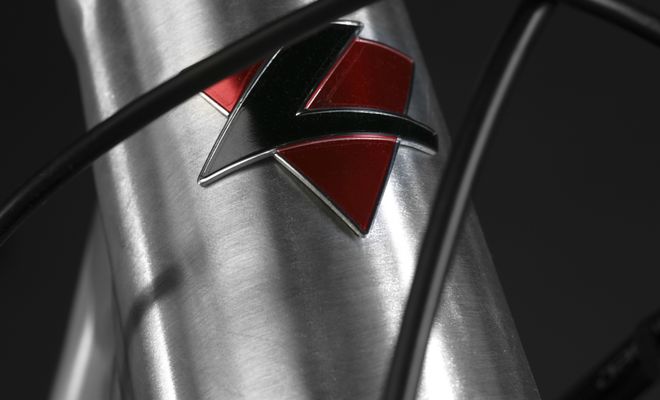

Aluminium is superior to carbon fiber. If only you do it right.

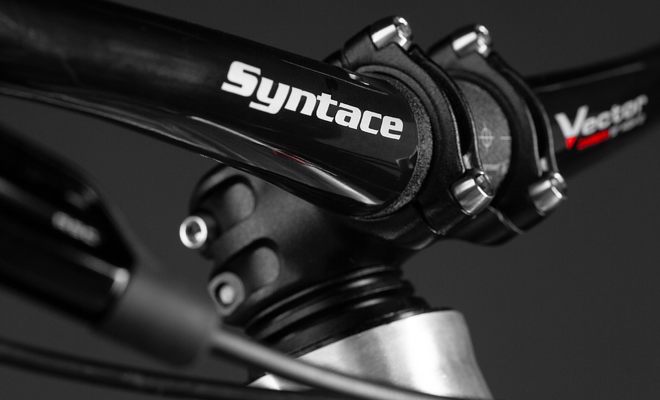

Handlebar, stem, X-12 thru axle, wheelset and steering headset have been designed by Syntace. The combination of well-balanced components make the 601 Mk4 a sophisticated system bike.
The radically redesigned geometry of the 601 MK4 with a prolonged reach of about 20 to 35 mm, the adapted TCL chain stay length and the lowered bottom bracket leads to a balanced, stable and yet extraordinarily agile riding performance. With its customizable features such as the VarioSpin and the MicroAdjust Shockmount, the geometry of the frame remains adaptable to your individual requirements.

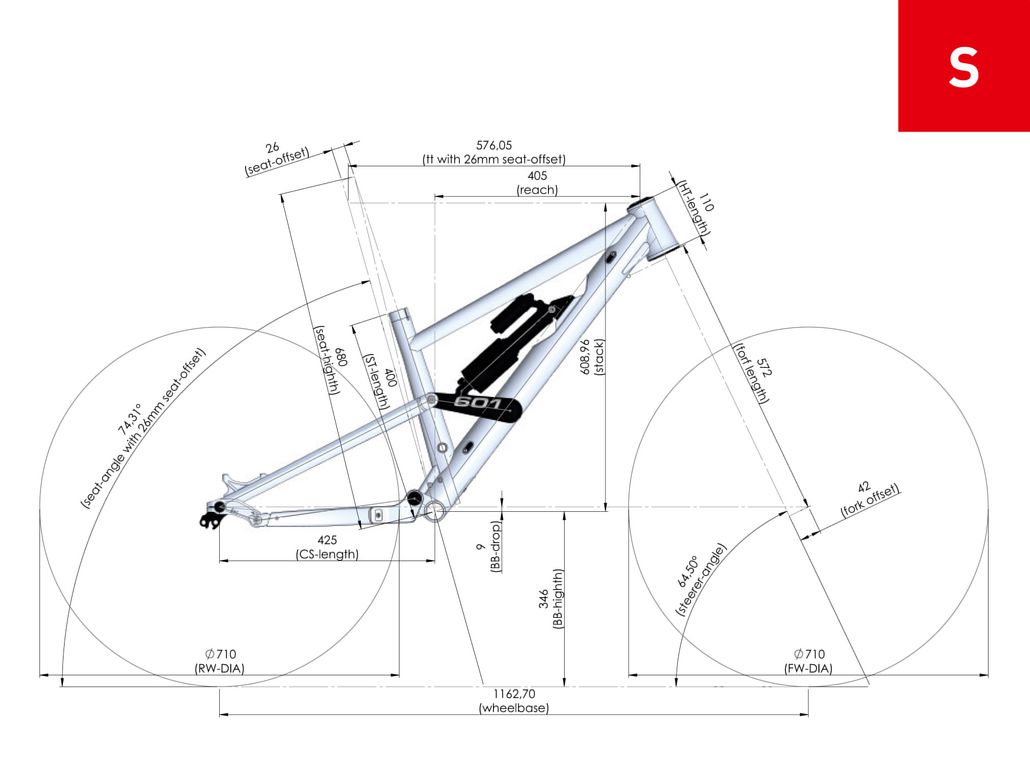

Body size recommendation: 156 cm – 169 cm
Top tube: 576 mm
Steering tube: 110 mm
Seat tube length: 400 mm
Chain stay: 425 mm
Wheel base: 1.162,7 mm
Bottom bracket height: 346 mm
Bottom bracket drop: 9 mm
Seat angle: 74°
Steering angle: 64,5°
Fork insert: 572 mm
Fork offset: 42 mm
Reach: 405 mm
Stack: 609 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size 27.5˝
Maximum tire width 2.35˝

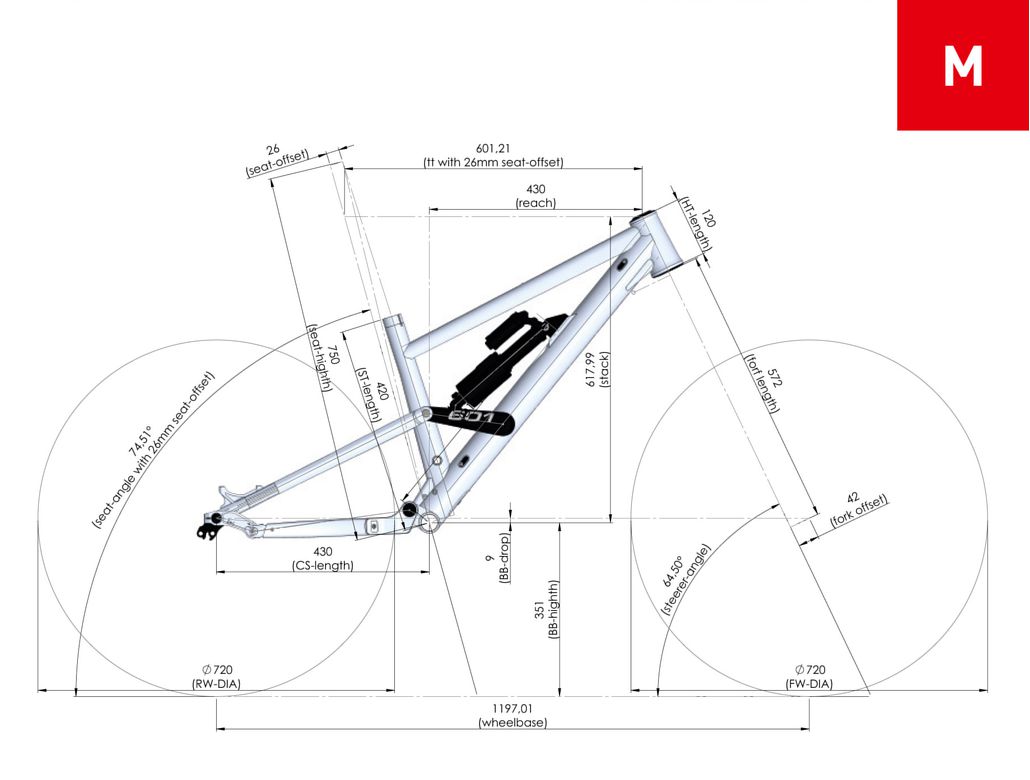

Body size recommendation: 167 cm – 178 cm
Top tube: 601,2 mm
Steering tube: 120 mm
Seat tube length: 420 mm
Chain stay: 430 mm
Wheel base: 1.197 mm
Bottom bracket height: 351 mm
Bottom bracket drop: 9 mm
Seat angle: 74°
Steering angle: 64,5°
Fork insert: 572 mm
Fork offset: 42 mm
Reach: 430 mm
Stack: 618 mm
Wheel diameter rear: 720 mm
Wheel diameter front: 720 mm
Wheel size 27.5˝
Maximum tire width 2.6˝

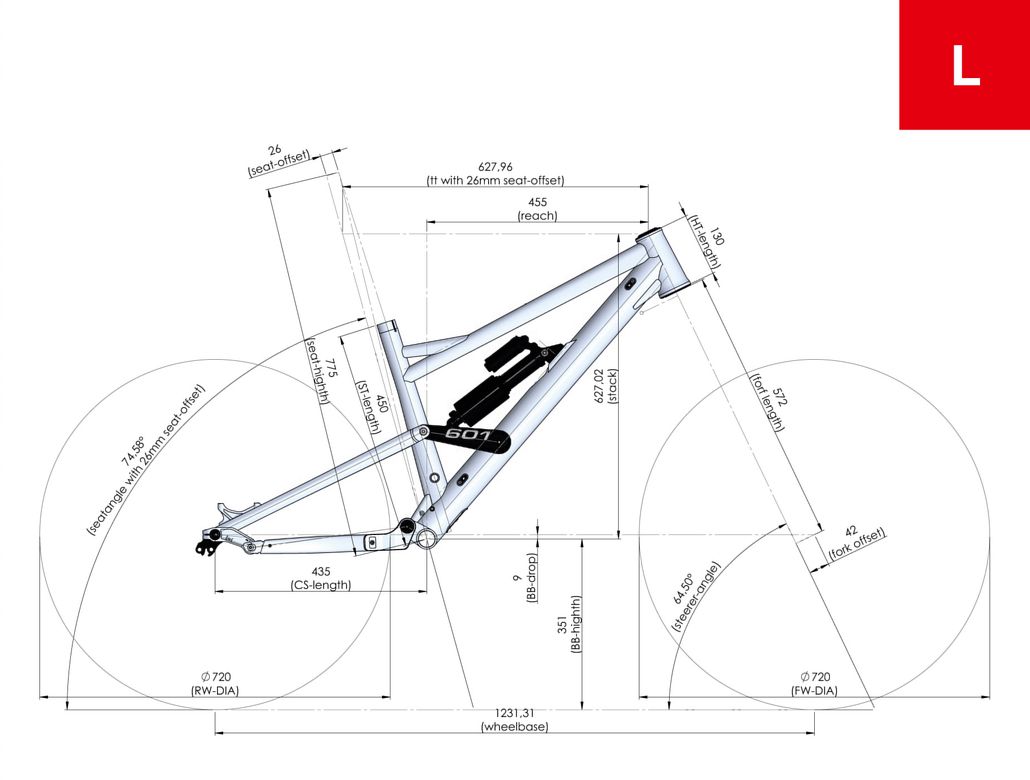

Frame Length L
Body size recommendation: 176 cm – 186 cm
Top tube: 628 mm
Steering tube: 130 mm
Seat tube length: 450 mm
Chain stay: 435 mm
Wheel base: 1231.3 mm
Bottom bracket height: 351 mm
Bottom bracket drop: 9 mm
Seat angle: 74°
Steering angle: 64,5°
Fork insert: 572 mm
Fork offset: 42 mm
Reach: 455 mm
Stack: 627 mm
Wheel diameter rear: 720 mm
Wheel diameter front: 720 mm
Wheel size 27.5˝
Maximum tire width 2.6˝

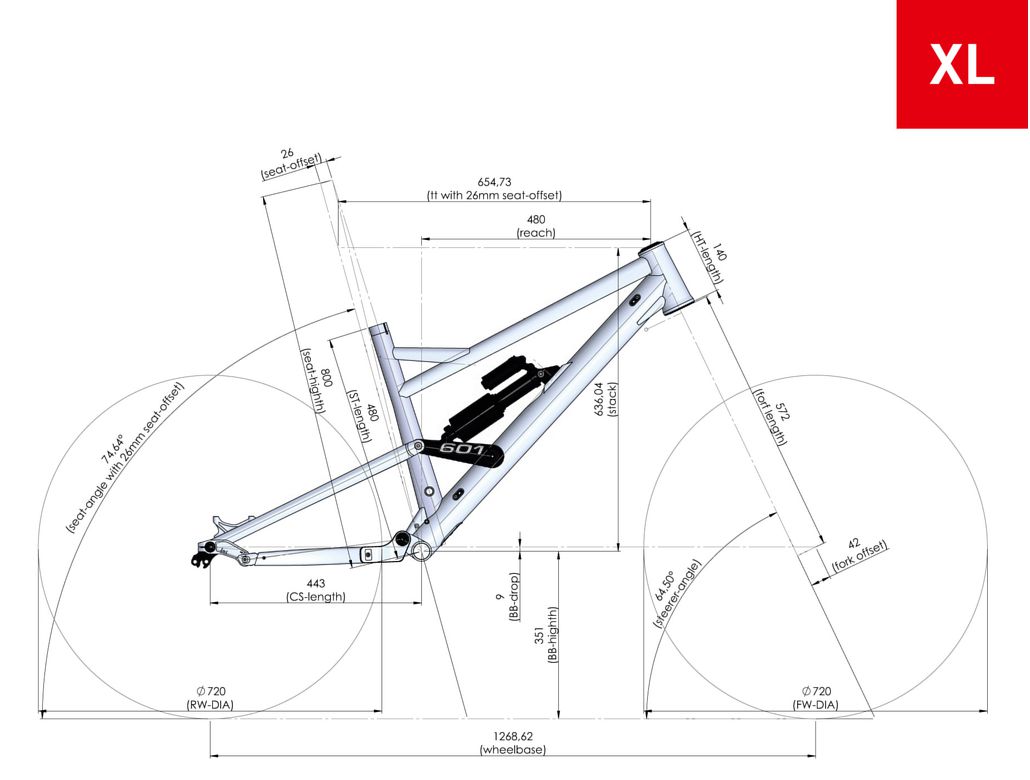

Body size recommendation: 184 cm – 196 cm
Top tube: 654,7 mm
Steering tube: 140 mm
Seat tube length: 480 mm
Chain stay: 443 mm
Wheel base: 1268.6 mm
Bottom bracket height: 351 mm
Bottom bracket drop: 9 mm
Seat angle: 74°
Steering angle: 64,5°
Fork insert: 572 mm
Fork offset: 42 mm
Reach: 480 mm
Stack: 636 mm
Wheel diameter rear: 720 mm
Wheel diameter front: 720 mm
Wheel size 27.5˝
Maximum tire width 2.6˝
