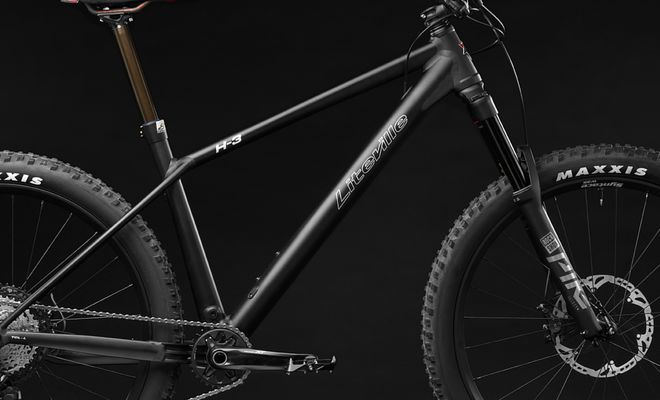

Nice to look at and very capable – the H-3 Mk3 is a pure bike with a classic, diamond shape main frame.

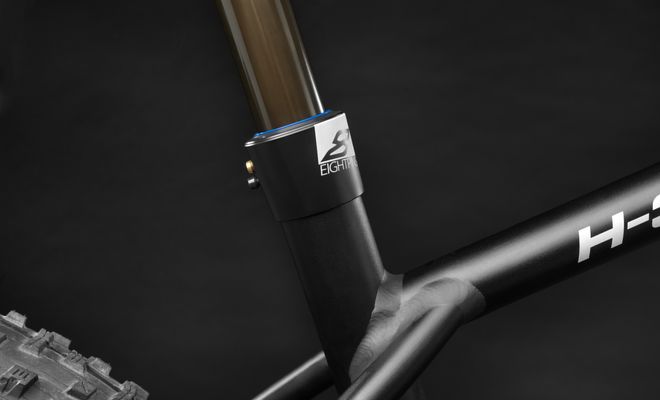

The H-3 Mk3 frame is designed to fit the awarded, fully integrated EIGHTPINS dropper post. The Factory Machines come with the EIGHTPINS seatpost as standard.

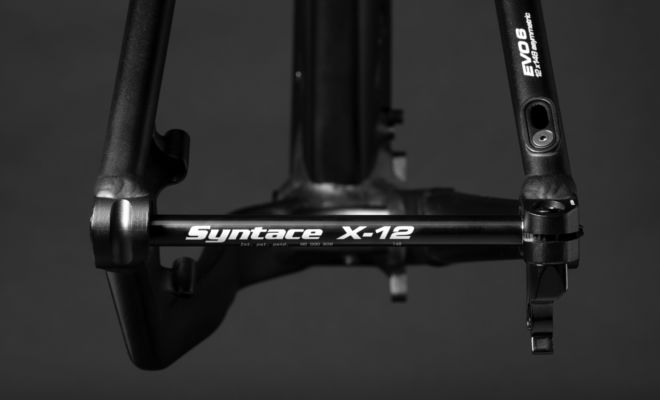

EVO6 means: taking advantage of the extra clearance of the Boost standard for an improved chain line, a balanced spoke triangle and thus a more stable rear wheel.

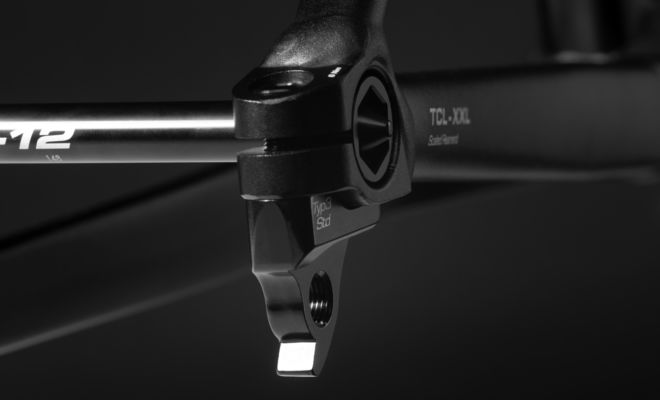

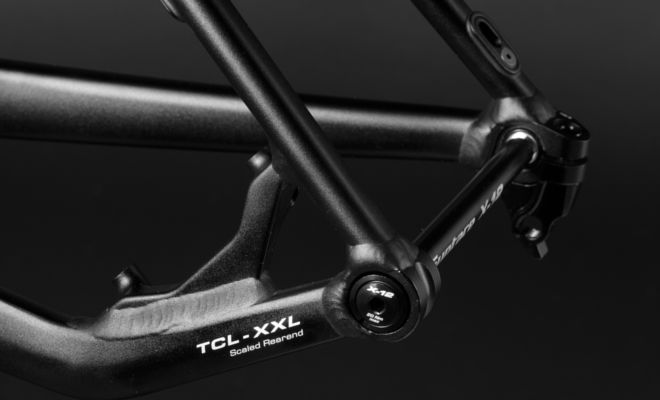

It is the sensational weight of no more than 39g, the unsurpassed stiffness and the super easy handling mounting and demounting the rear wheel that make the system perform like no other in the industry.
Perfect function as it is lighter and smarter than common rear derailleur hangers.
Hidden cable routing for the brake hose, the shifting cables and the EIGHTPINS cable making for clean optics, perfect function and protection against mechanical impacts from the outside.

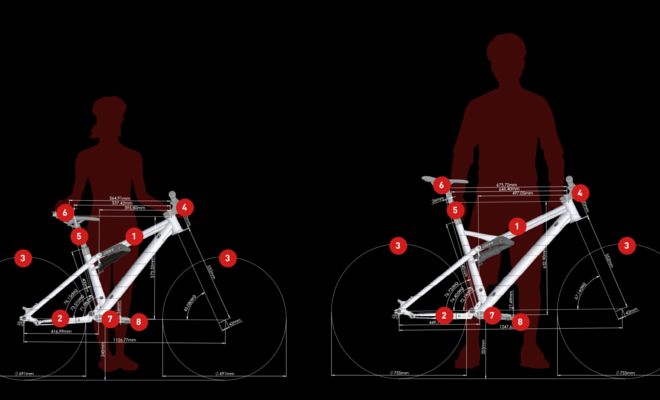

It is our goal to have everybody experience the same riding pleasure with our bikes, no matter the rider's body size.

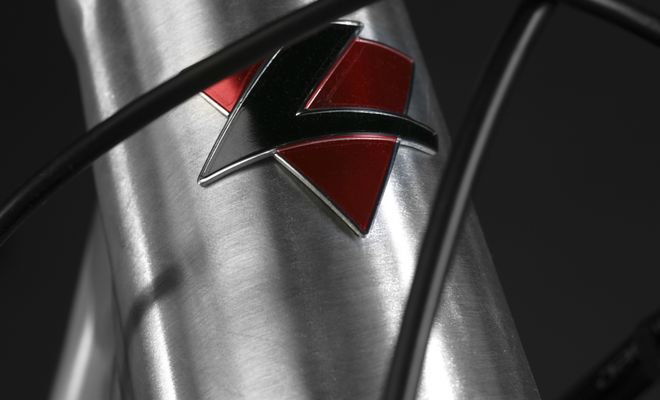

The material aluminium is still superior to the competition carbon, if you do it right.

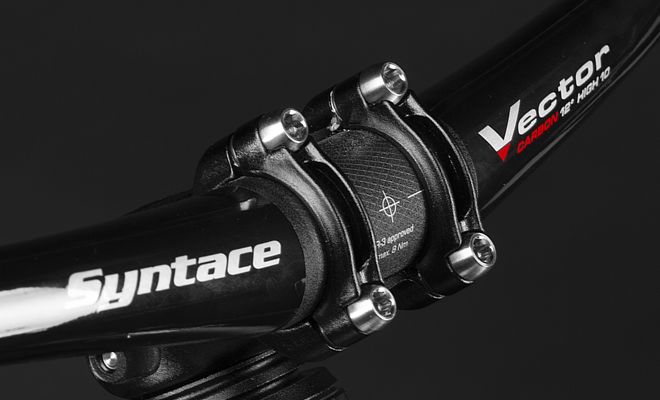

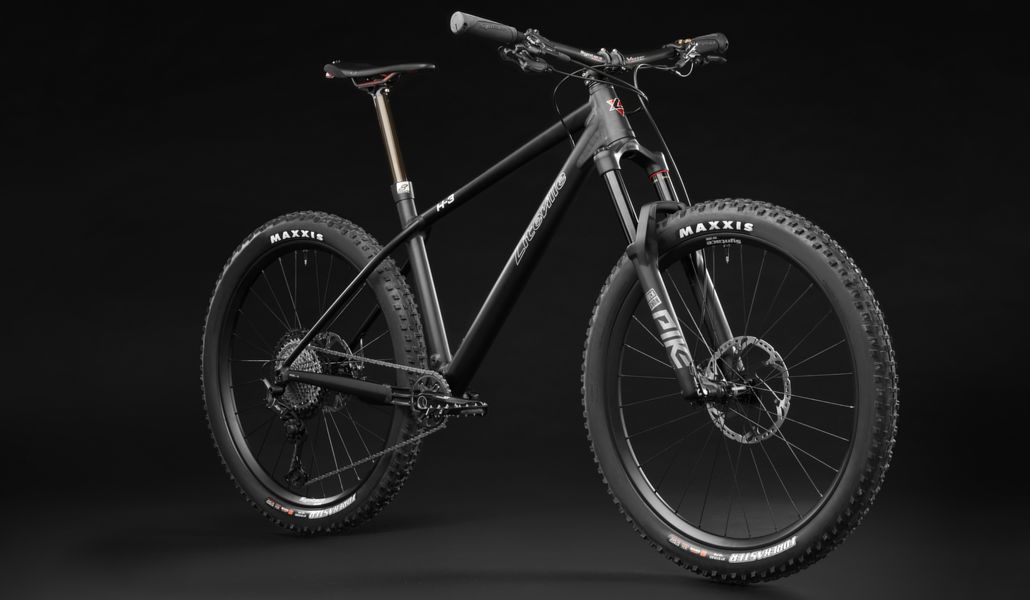

Handlebar, stem, X-12 thru axle, wheelset and steering headset have been designed by Syntace. The combination of well-balanced components make the H-3 Mk3 a sophisticated system bike.

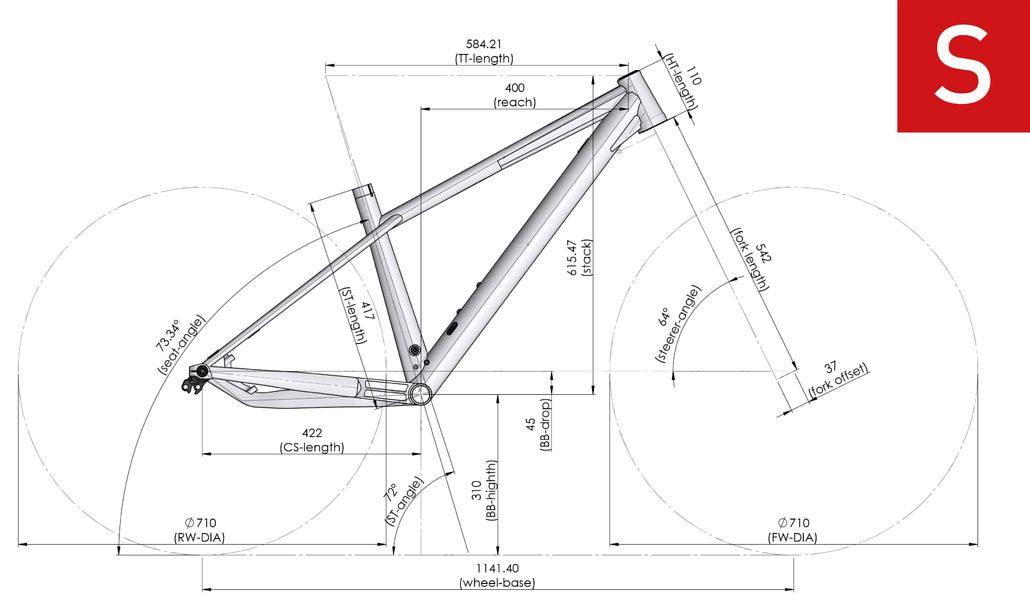

Body size recommendation: 161 – 169 cm
Top tube length: 584 mm
Steering tube length: 110 mm
Seat tube length: 417 mm
Chain stay length: 422 mm
Wheel base: 1141 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 400 mm
Stack: 615 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.6˝

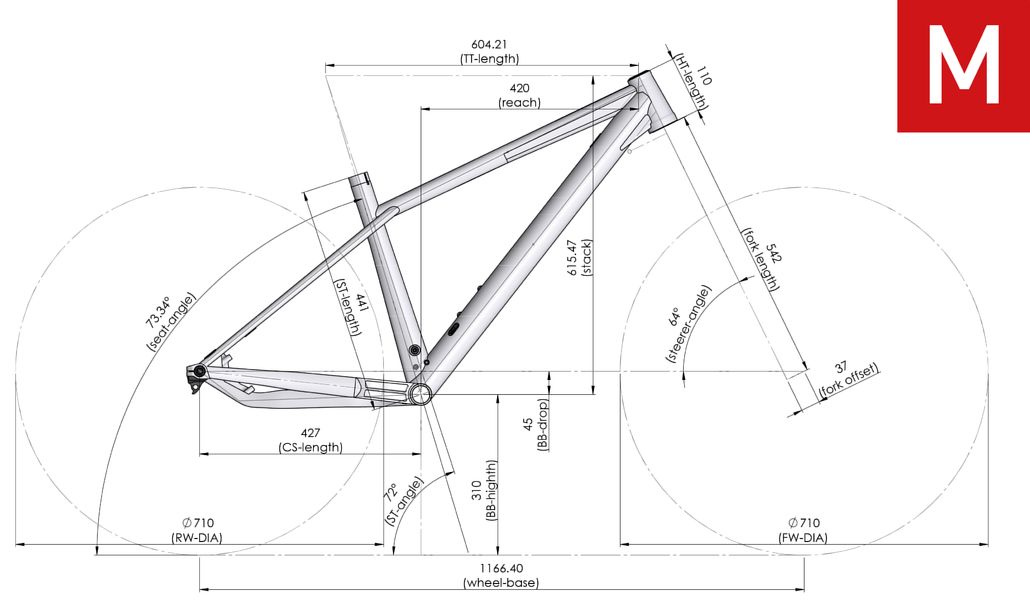

Body size recommendation: 167 – 178 cm
Top tube length: 604 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 427 mm
Wheel base: 1166 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 420 mm
Stack: 616 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.8˝

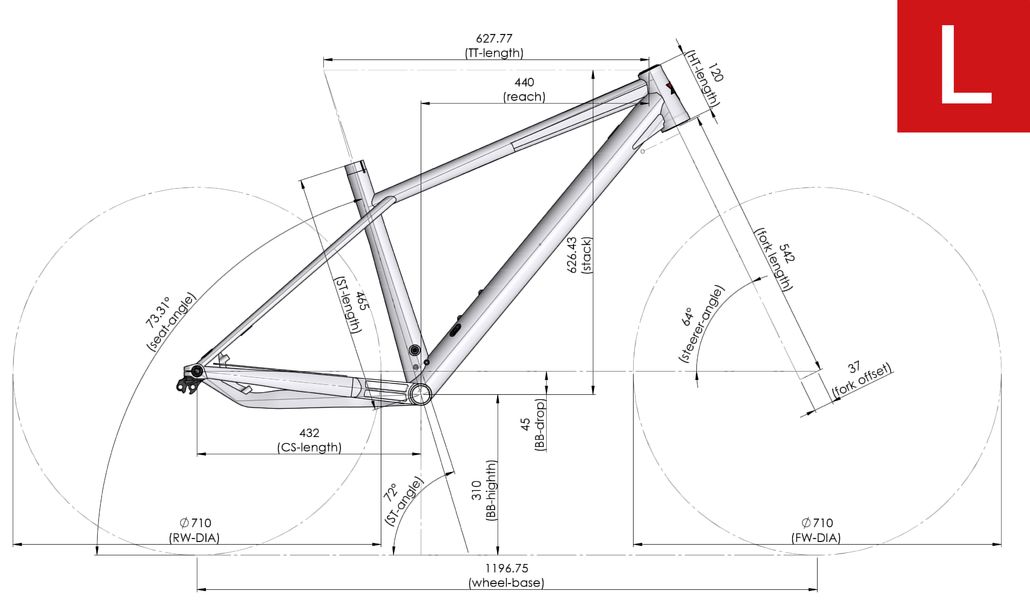

Body size recommendation: 176 – 186 cm
Top tube length: 628 mm
Steering tube length: 120 mm
Seat tube length: 465 mm
Chain stay length: 432 mm
Wheel base: 1197 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 440 mm
Stack: 626 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝

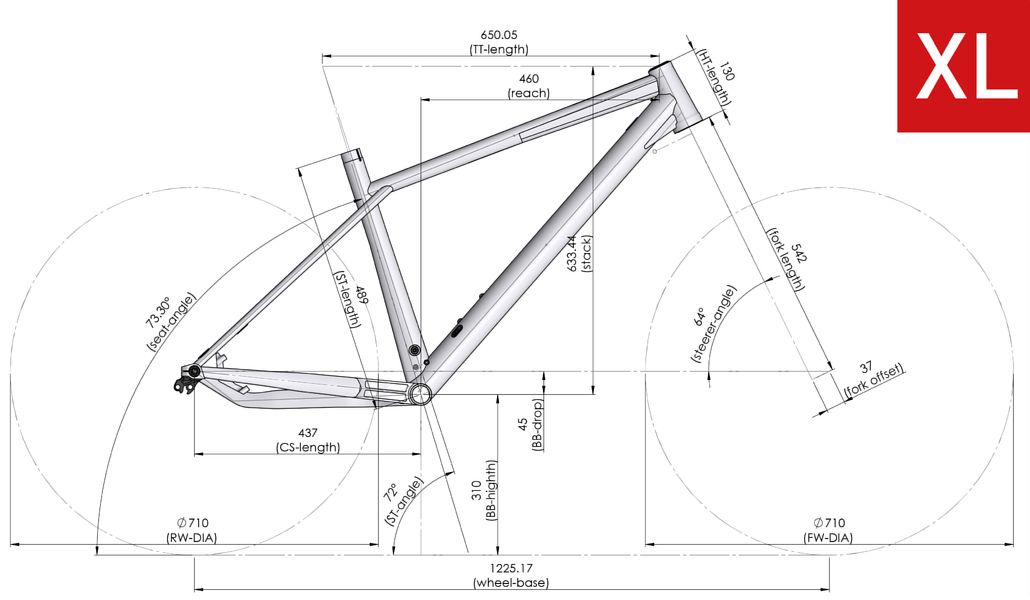

Body size recommendation: 184 – 192 cm
Top tube length: 650 mm
Steering tube length: 130 mm
Seat tube length: 489 mm
Chain stay length: 437 mm
Wheel base: 1225 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 460 mm
Stack: 633 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Frame length XXL
Body size recommendation: 189 – 205 cm
Top tube length: 673 mm
Steering tube length: 140 mm
Seat tube length: 513 mm
Chain stay length: 442 mm
Wheel base: 1255 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 480 mm
Stack: 642 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Wheel size: 29˝
maximum tire width: 2.35˝
