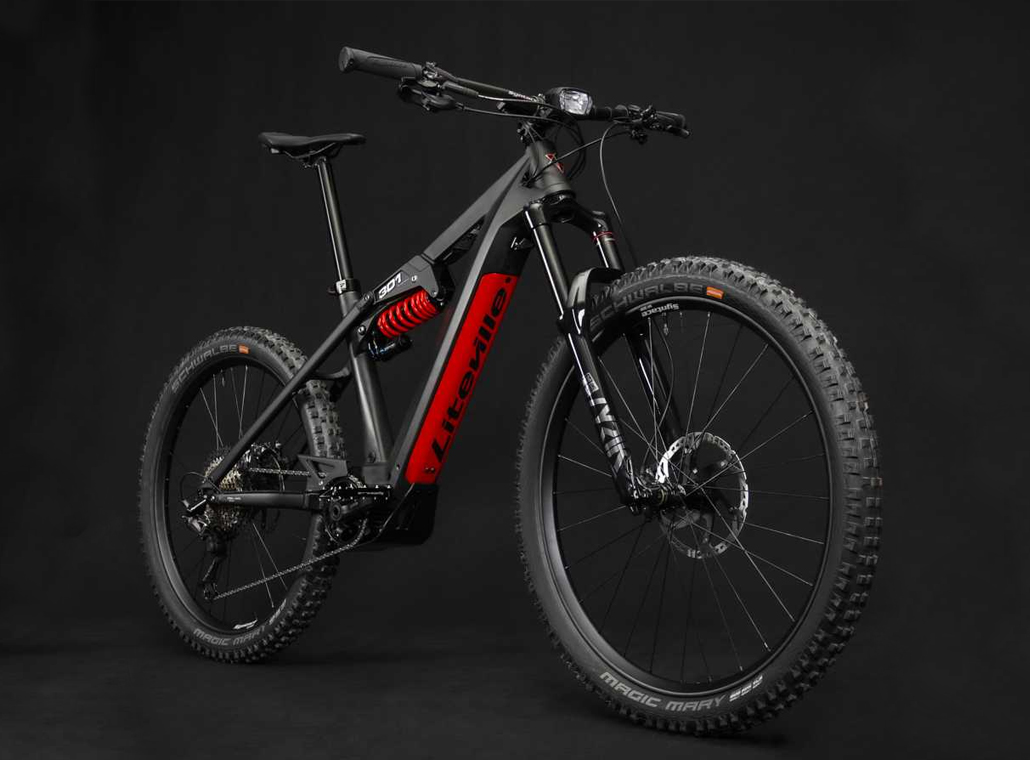

Thanks to the "Linear Steering Geometry", the 301CE performs as relaxed and intuitively as a carving ski

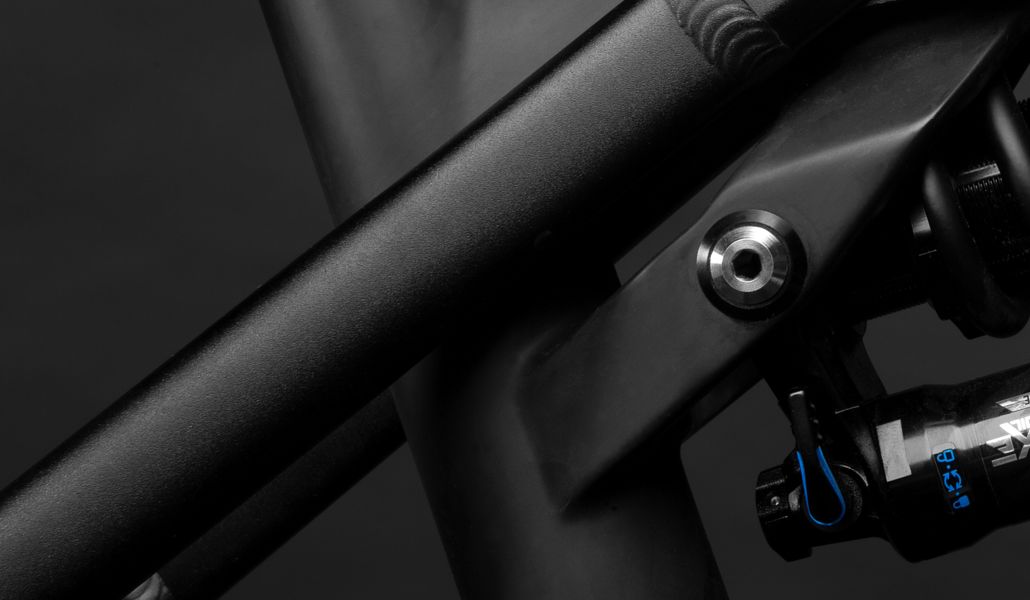

Super stiff special Aluminum rear frame triangle. Super lightweight carbon main frame, FEM-optimized frame design.
Super smooth load response, solid mid travel section and vivid "pop" towards the end. The 301CE benefits from its progressive travel with Syntace Pro-Spring (air damper as option).

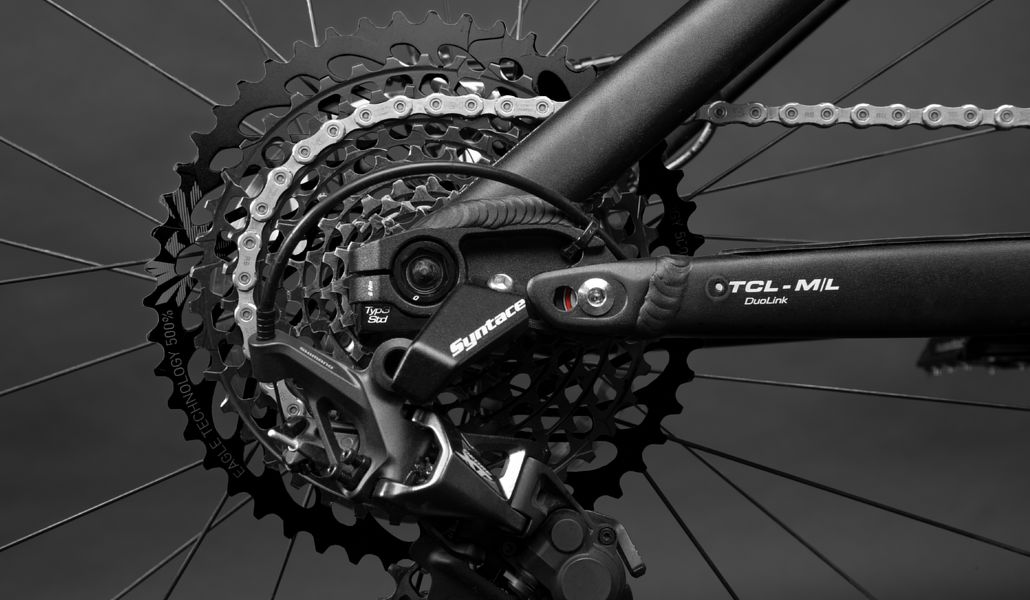

The rear frame of the 301CE Mk1 is designed for both wheel sizes, either 27.5˝ or 29˝: no holds barred and with perfect height compensation. Switch between two different rear end lengths within minutes.

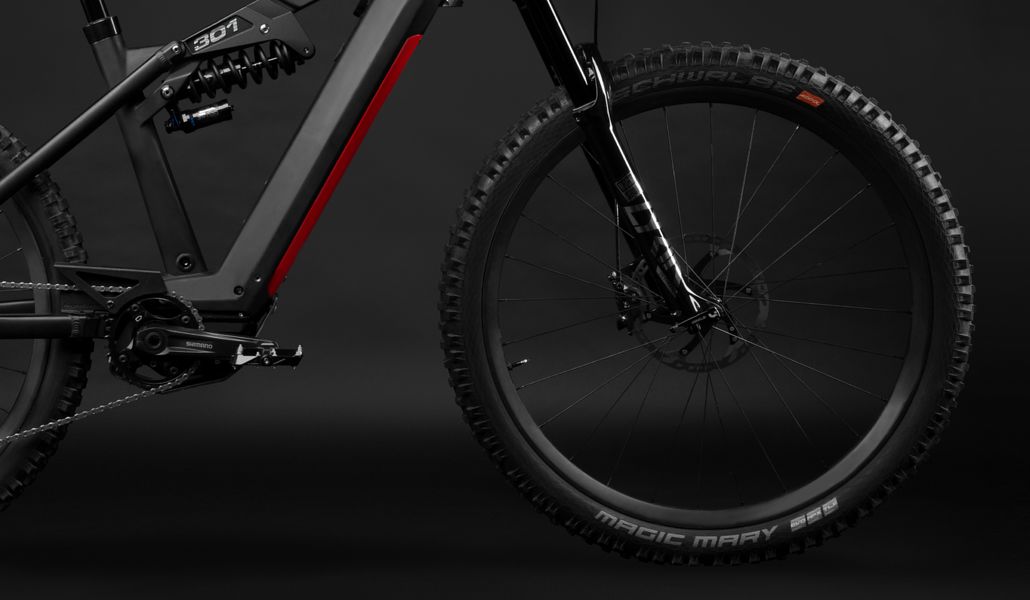

29˝ front wheel with 170 mm travel combined with shorter chainstays for improved offroad performance.

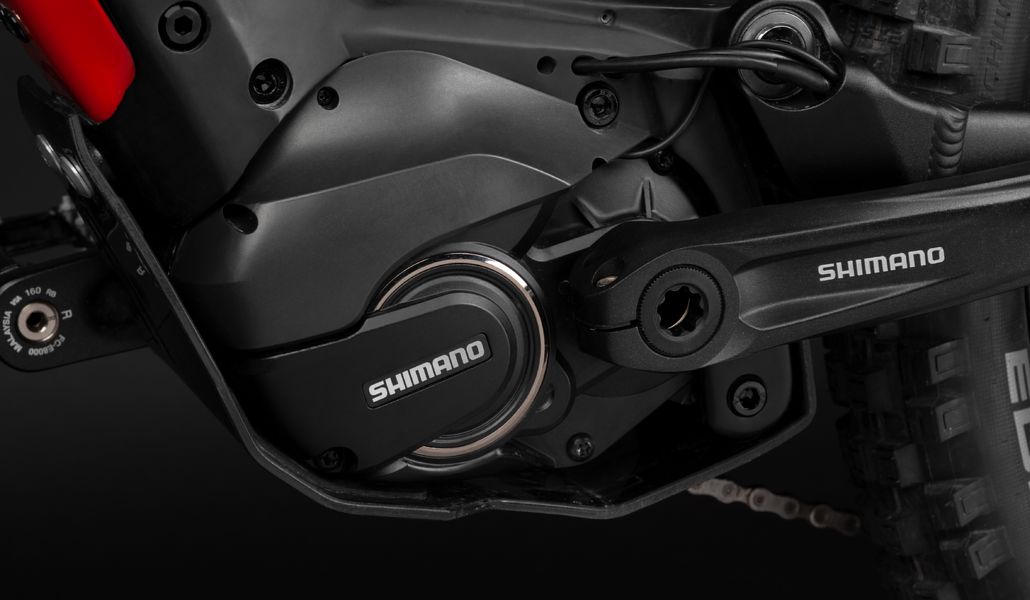

Shimano STEPS E8000. Super low profile motor integration in uninterrupted carbon chassis.
New, lightweight and powerful 630 Wh battery integration incl. airstream cooling with durable battery screw on top.

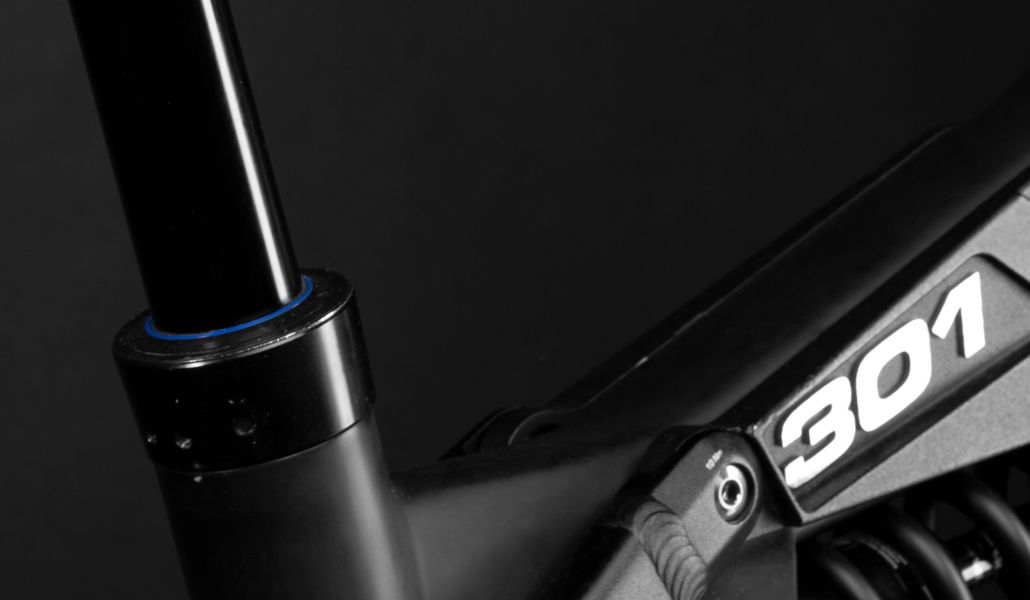

Eightpins NGS2 integrated dropper post (Pat. pend.) Lightweight design with up to 220 mm fast travel.

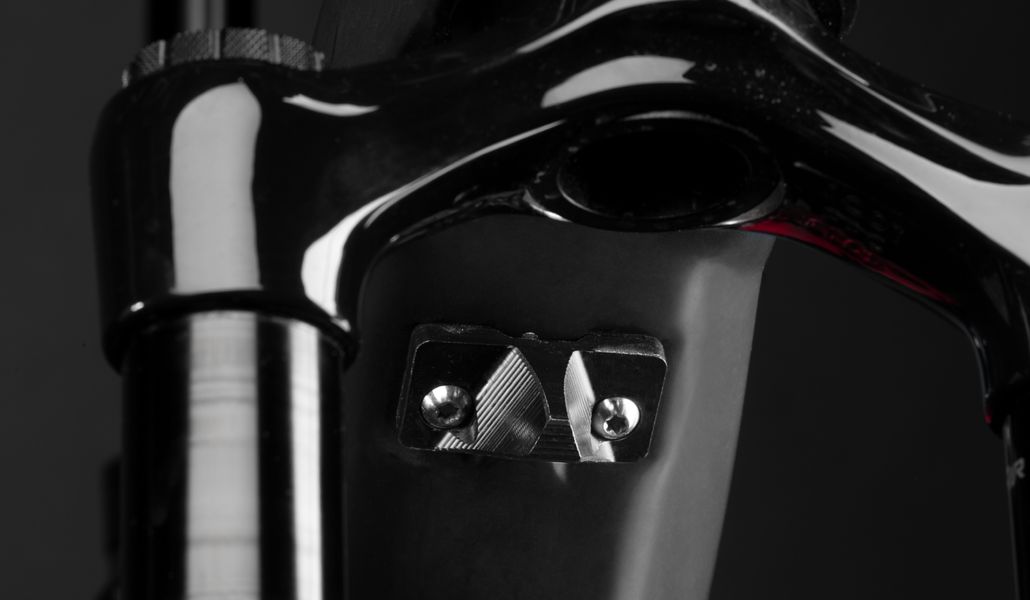

The handlebar stopper (Pat. pend.) protects the frame while not reducing the full left/ right steering angle lock.

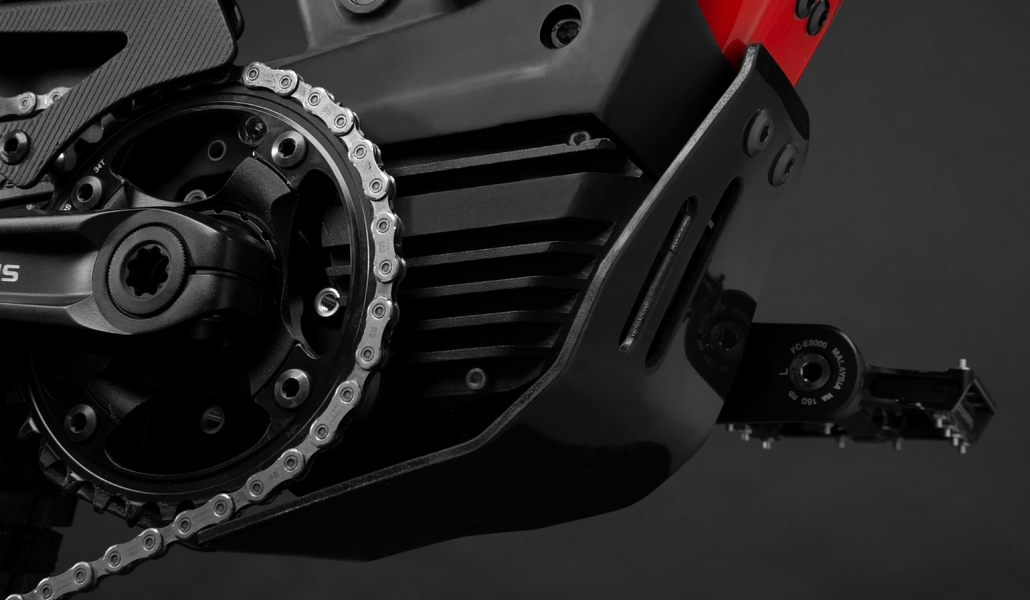

Extra tough skid plate with chain protection function; 4mm plastic plate; slides well, buffers effectively and stands impacts lastingly (optional).

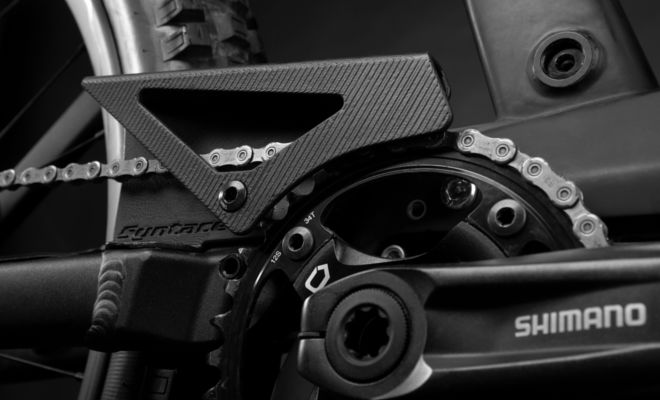

Chain tunnel (Pat. pend.) making for a 20-50 % longer chain life span (apart from the fact that one can now ride with shorts) (optional).

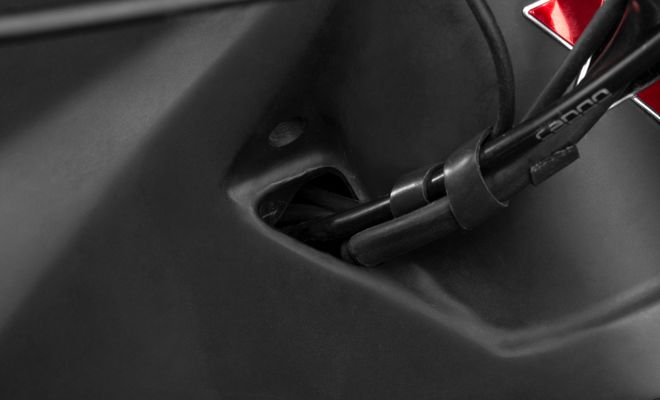

Hidden cable routing for the brake hose, the shifting cables and the EIGHTPINS cable making for clean optics and perfect function.

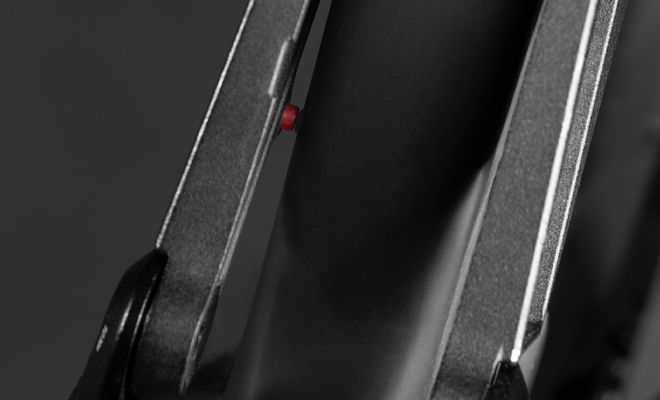

Monitoring and adjusting the SAG without a rubber O-ring or cable tie. It is possible to do this while sitting on the bike, even while riding.

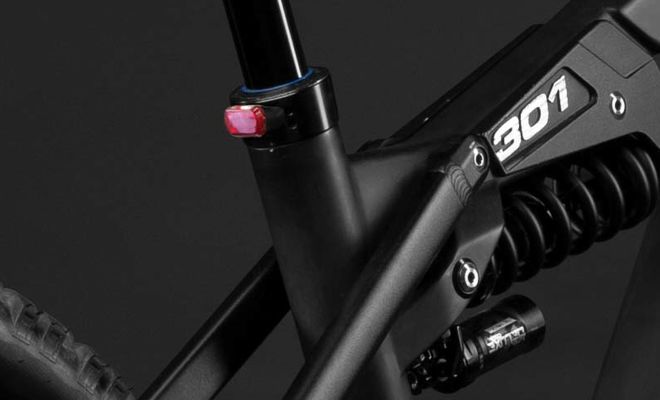

Rear light with internal cable routing (optional).

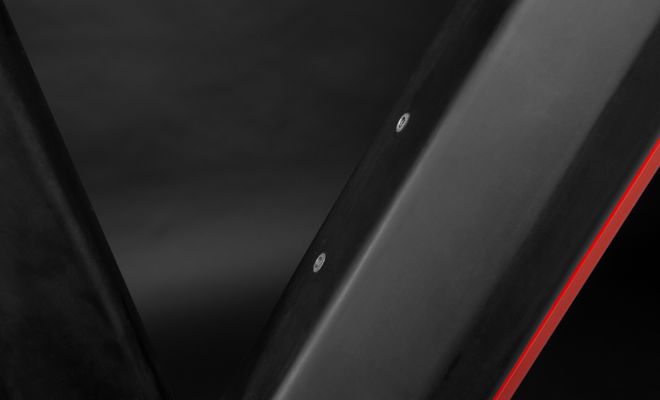

Preparation for bottle holder (bottles up to 0,6 l).

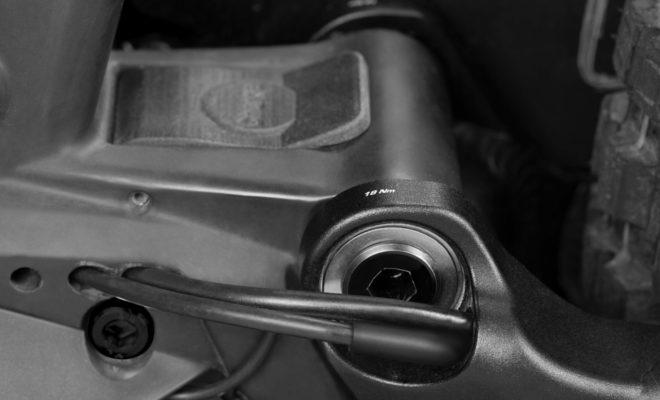

Extra wide chain stay bearing distance for a maximum of directional stability and extended lifespan.

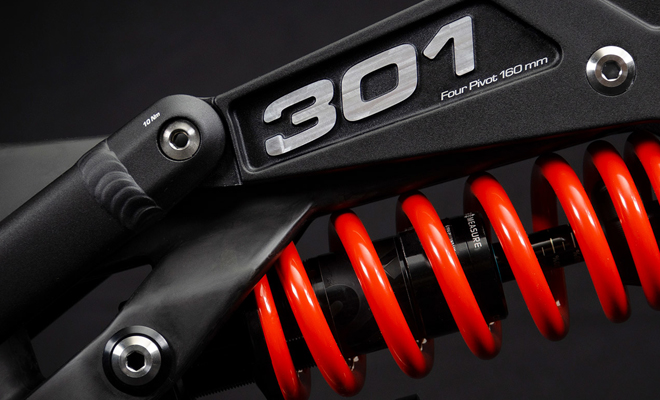

Rear suspension fully guided with reinforced ball and needle bearings.

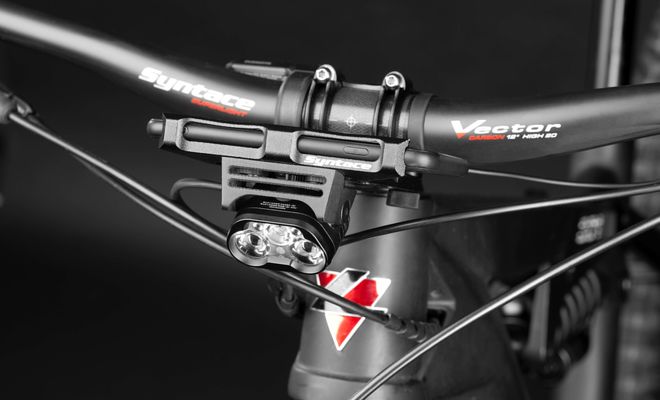

Modern ingenuity: smartphone mount with headlight integration (as option).

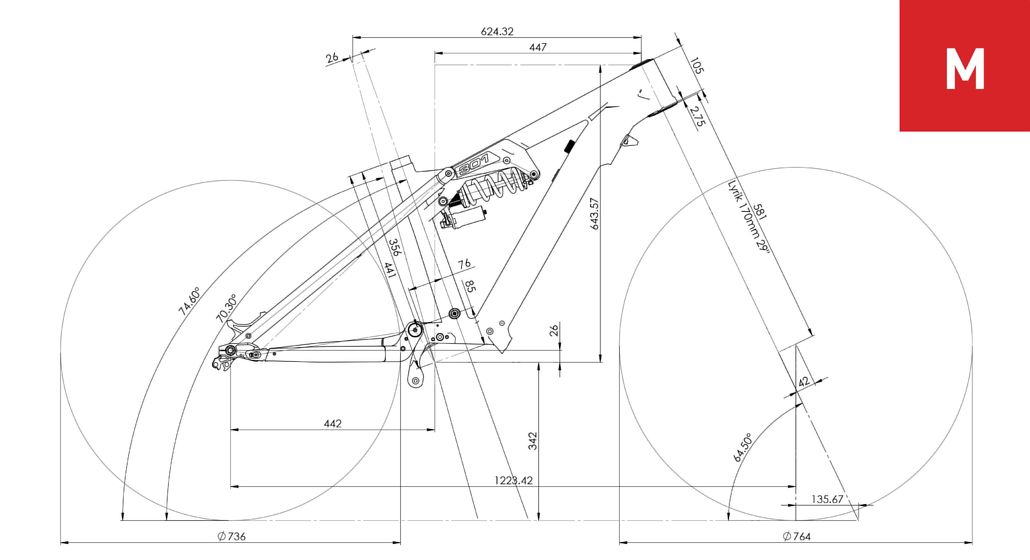

Body size recommendation:170 cm – 180 cm
Top tube length: 625 mm
Steering tube length: 105 mm
Seat tube length: 441 mm
Chain stay length: 442 mm
Wheel base: 1223,42 mm
Bottom bracket drop: 26 mm
Seat angle: 74,60°
Steering angle: 64,50°
Fork insert: 581 mm
Fork offset: 42 mm
Reach: 447 mm
Stack: 643,57 mm
Wheel diameter rear: (27,5˝) 736 mm
Wheel diameter front: (29˝) 764 mm
maximum tire widtht 73 mm (27,5˝ x 2.8)

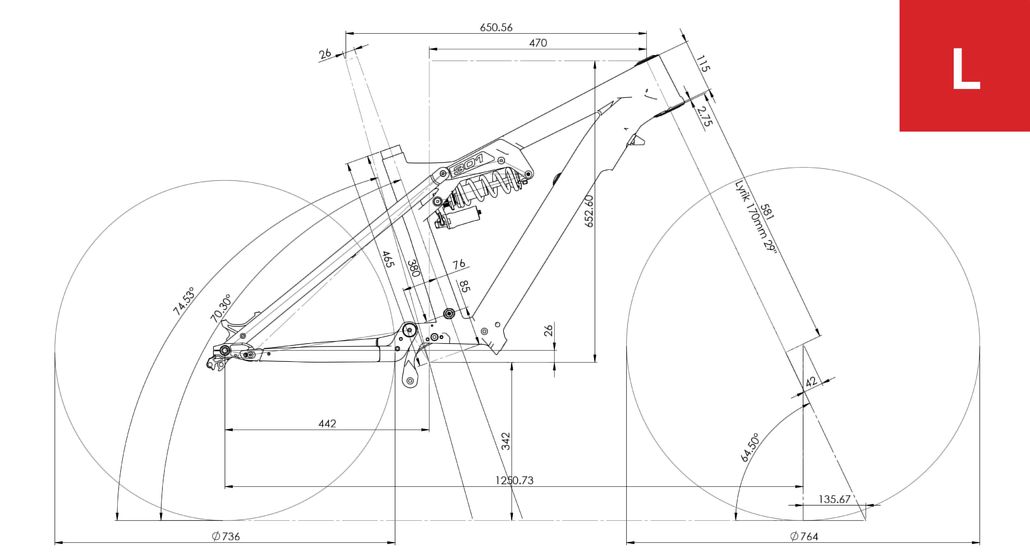

Body size recommendation: 178 cm – 190 cm
Top tube length: 651 mm
Steering tube length: 115 mm
Seat tube length: 465 mm
Chain stay length: 442 mm
Wheel base: 1250 mm
Bottom bracket drop: 26 mm
Seat angle: 74,53°
Steering angle: 64,50°
Fork insert: 581 mm
Fork offset: 42 mm
Reach: 470 mm
Stack: 653 mm
Wheel diameter rear: (27,5˝) 736 mm
Wheel diameter front: (29˝) 764 mm
maximum tire width: 73 mm (27,5˝ x 2.8)
