Liteville 4-ONE Mk1









4-ONE Mk1

One for all - the 4-ONE is meant to cover a maximum of application range: as a gravel bike, a cross bike or an everyday bike with the option to make it a travel bike thanks to several interfaces for carriers. With regard to design, ergonomics and engineering, we have successfully incorporated our knowledge of both designing mountain bikes and road bike components in the all-new 4-ONE. The result is a genuine Liteville gravel bike being available in three different, attractive equipment options.

4-ONE Factory Machines

 With the 4-ONE Factory Machines we combine the best of two different worlds. The knowledge of building the ultimate mountain bike and the one of designing the best bike components possible. The wheelset and the handlebar have been designed specifically for the 4-ONE. The fork, featuring the Syntace X-12 standard, is the result of a close cooperation with ENVE.

Request A Quote



FEATURES



Frame design

Sloping geometry for most agile riding and more leg clearance getting on and off the bike.

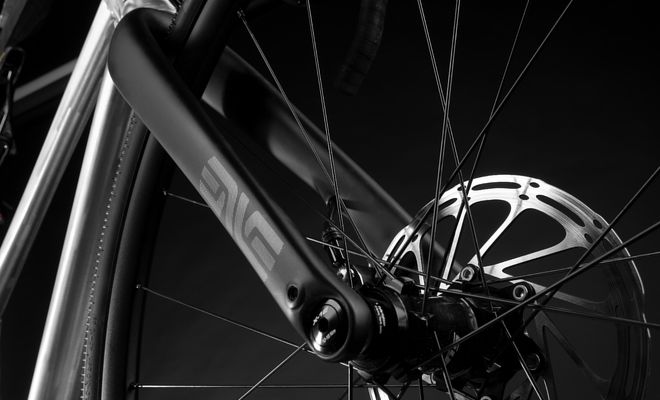

ENVE fork

Lightweight, incredibly stiff and super nice to look at: the ENVE fork features the Syntace X-12 thru axle.

Gravel handlebar

Specifically designed by Syntace for the 4-ONE. Perfect damping performance and a width of 500 mm for precise steering.

Scaled Sizing

It is our goal to have everybody experience the same riding pleasure with our bikes, no matter the rider's body size.

EVO3

Equal spoke angles on both sides thanks to EVO3 for more rear wheel stiffness and more balanced spoke tensions.

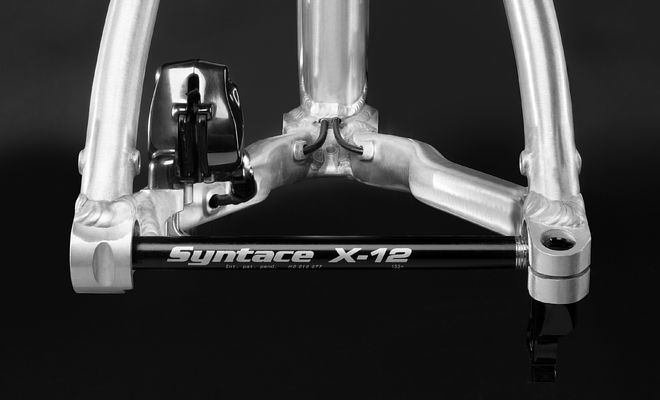

X-12 thru axle

It is the sensational weight of no more than 39g, the unsurpassed stiffness and the super easy handling mounting and demounting the rear wheel that make the system perform like no other in the industry.

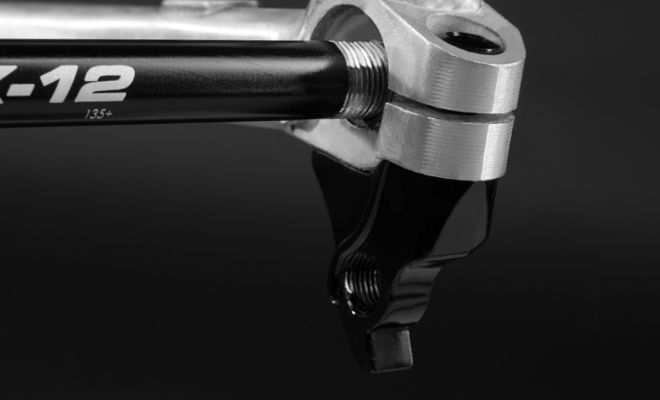

Rear derailleur hanger

Perfect function as it is lighter and smarter than common rear derailleur hangers.

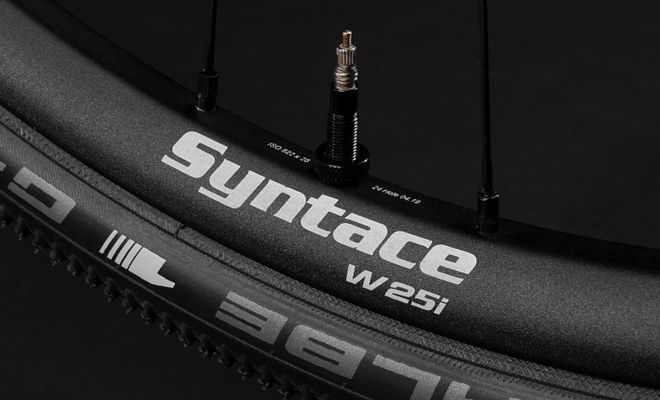

Gravel wheelset

25 mm inner width allow for decisively lower tyre pressures leading to more damping performance and more grip.

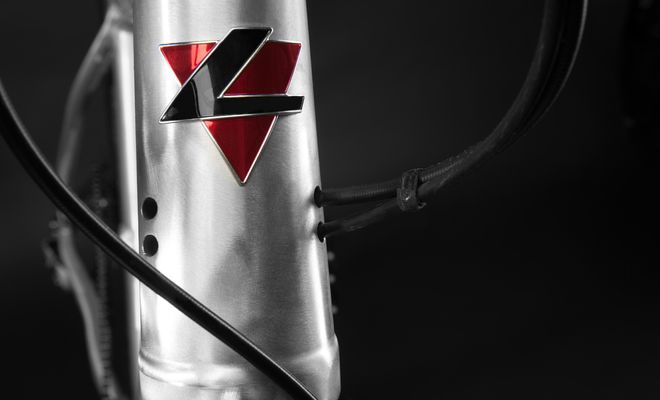

Cable routing

Hidden cable routing for the brake hose, the shifting cables and the EIGHTPINS cable making for clean optics, perfect function and protection against mechanical impacts from the outside.

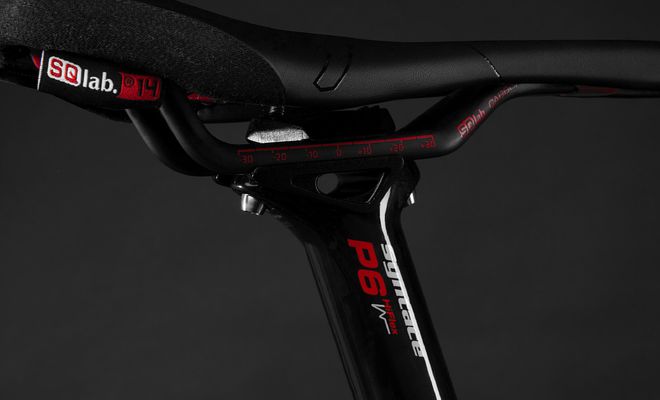

Seatpost 34.9

Syntace P6 Carbon HiFlex, shock absorbing and damping oscillations. The wide diameter of 34,9 mm allows for long extension beyond the seat clamp.

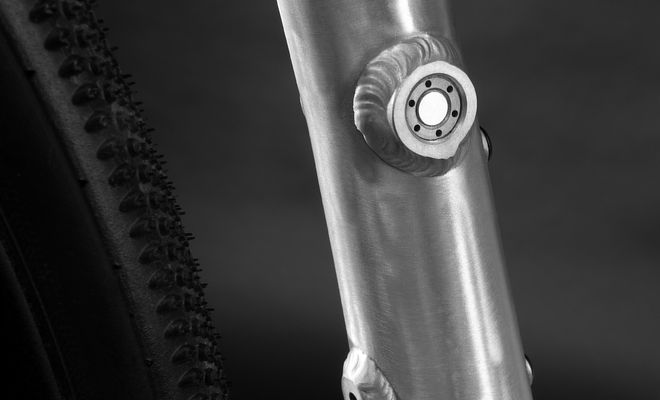

EIGHTPINS

The 4-ONE Mk1 frame features an interface for the awarded, fully integrated EIGHTPINS dropper seatpost which allows for more control and more comfort.

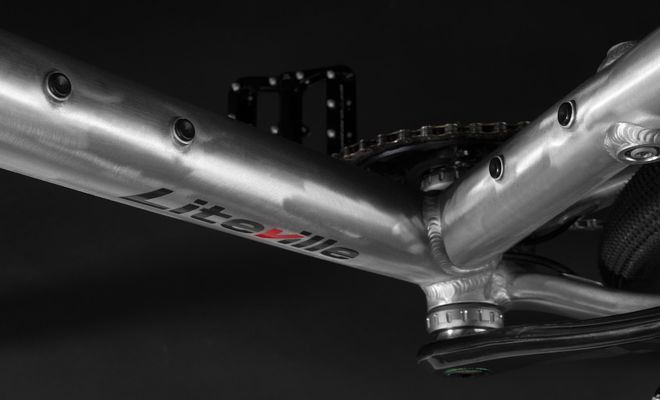

Two bottle cages

The frame triangle is spacious enough for two bottle cages for extended rides.

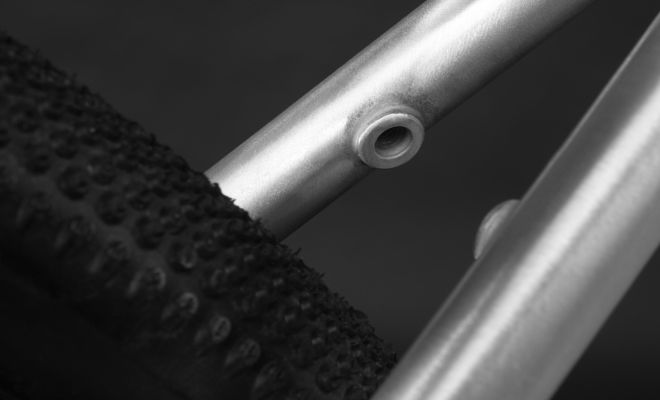

Attachment points

Point of contact: for carriers and mud guards alike, the 4-ONE features a variety of auxiliary attachment points.

Material & frame stiffness

The material aluminium is still superior to the competition carbon, if you do it right.

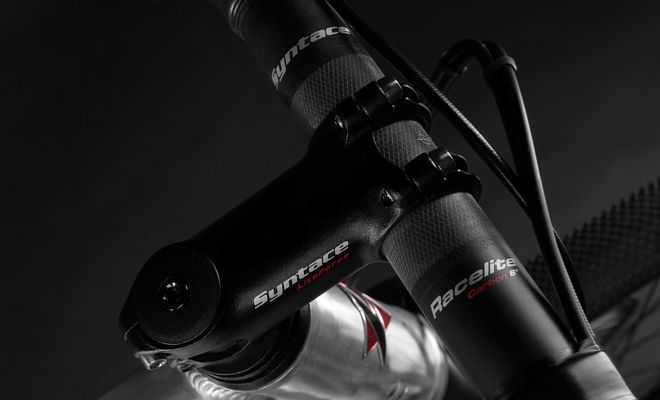

Syntace Parts

Handlebar, stem, X-12 thru axle, wheelset and steering headset have been designed by Syntace. The combination of well-balanced components make the 4-ONE Mk1 a sophisticated system bike.



GEOMETRY 4-ONE MK1



Frame length S

Body size recommendation: 158 cm - 169 cm

Top tube length: 557 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 415 mm
Wheel base: 1027,14 mm
Bottom bracket drop: 70 mm
Seat angle: 73°
Steering angle: 70°
Fork insert: 395 mm
Fork offset: 47 mm
Reach: 395 mm
Stack: 529,17 mm
Wheel diameter rear: 708 mm
Wheel diameter front: 708 mm

Wheel size: 29˝
maximum tire width: 40 mm

View Technical Drawing

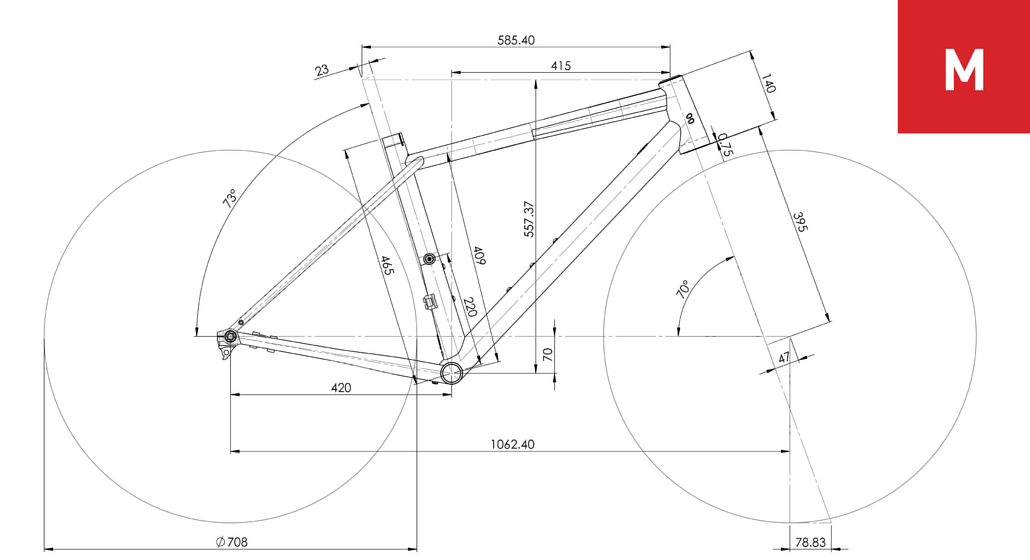

Frame length M

Body size recommendation: 167 cm - 178 cm

Top tube length: 585 mm
Steering tube length: 140 mm
Seat tube length: 465 mm
Chain stay length: 420 mm
Wheel base: 1062,40 mm
Bottom bracket drop: 70 mm
Seat angle: 73°
Steering angle: 70°
Fork insert: 395 mm
Fork offset: 47 mm
Reach: 415 mm
Stack: 557,37 mm
Wheel diameter rear: 708 mm
Wheel diameter front: 708 mm

Wheel size: 29˝
maximum tire width: 40 mm

View Technical Drawing

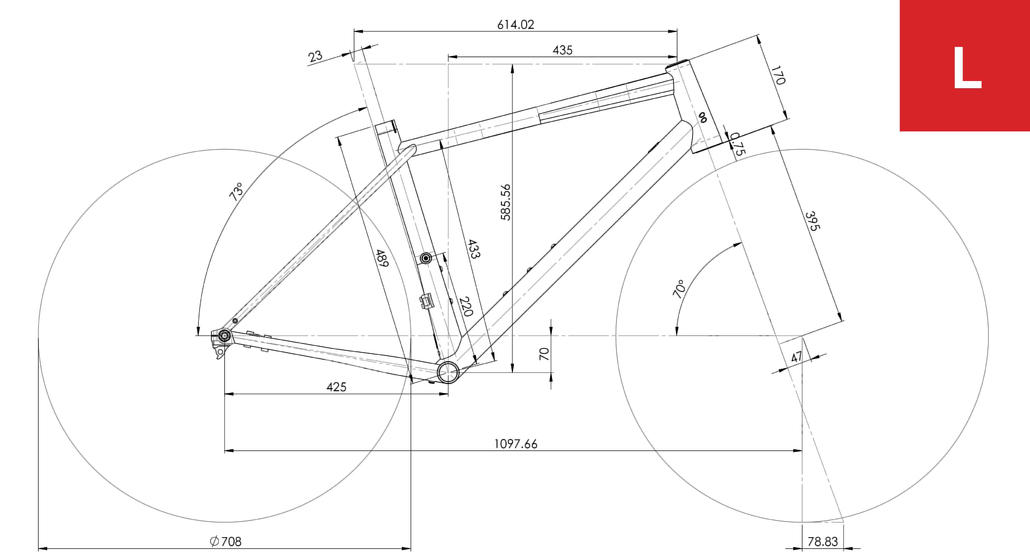

Frame length L

Body size recommendation: 176 cm - 186 cm

Top tube length: 614 mm
Steering tube length: 170 mm
Seat tube length: 489 mm
Chain stay length: 425 mm
Wheel base: 1097,66 mm
Bottom bracket drop: 70 mm
Seat angle: 73°
Steering angle: 70°
Fork insert: 395 mm
Fork offset: 47 mm
Reach: 435 mm
Stack: 585 mm
Wheel diameter rear: 708 mm
Wheel diameter front: 708 mm

Wheel size: 29˝
maximum tire width: 40 mm

View Technical Drawing


Frame length XL

Body size recommendation: 184 cm - 195 cm

Top tube length: 642 mm
Steering tube length: 200 mm
Seat tube length: 513 mm
Chain stay length: 430 mm
Wheel base: 1132,92 mm
Bottom bracket drop: 70 mm
Seat angle: 73°
Steering angle: 70°
Fork insert: 395 mm
Fork offset: 47 mm
Reach: 455 mm
Stack: 613,75 mm
Wheel diameter rear: 708 mm
Wheel diameter front: 708 mm

Wheel size: 29˝
maximum tire width: 40 mm

View Technical Drawing
